PVC SUCTION HOSE

Product Profile

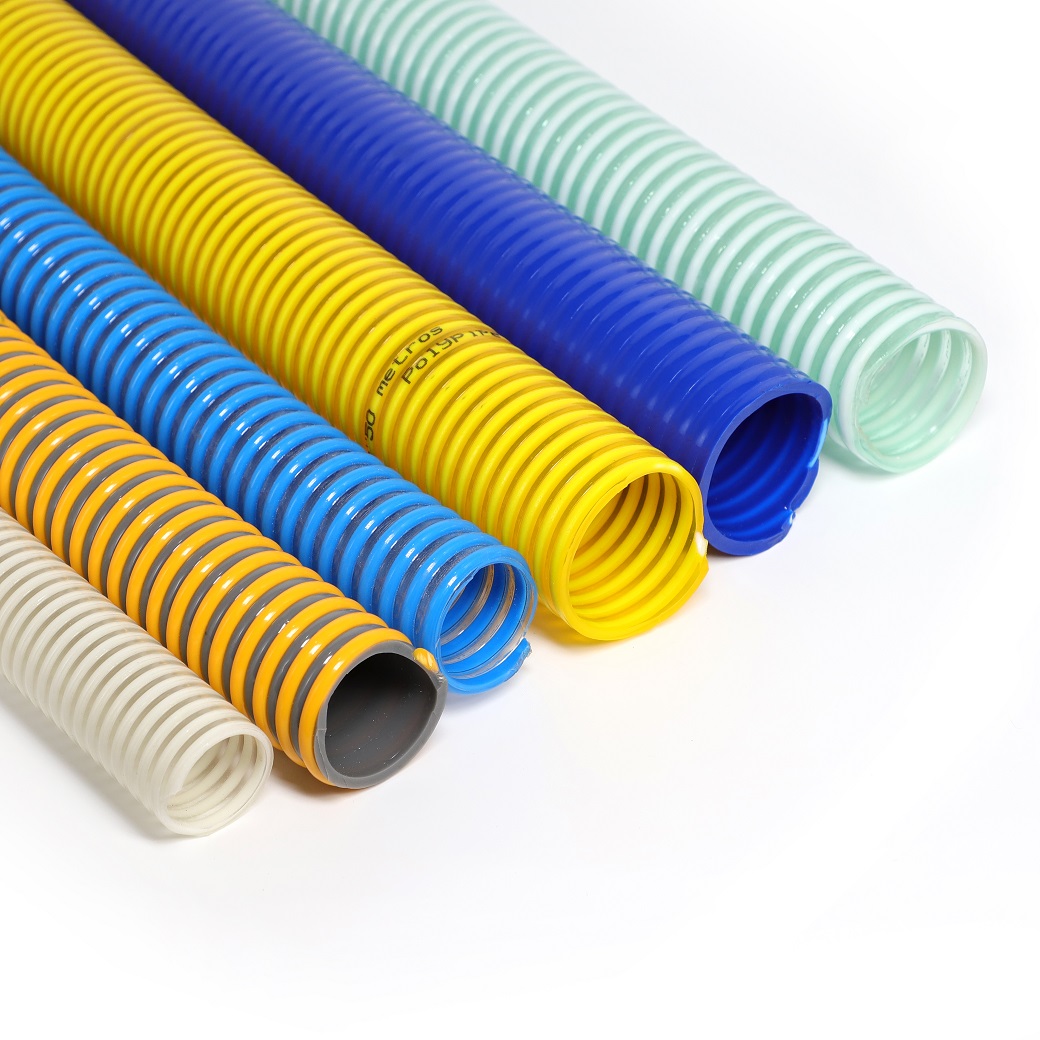

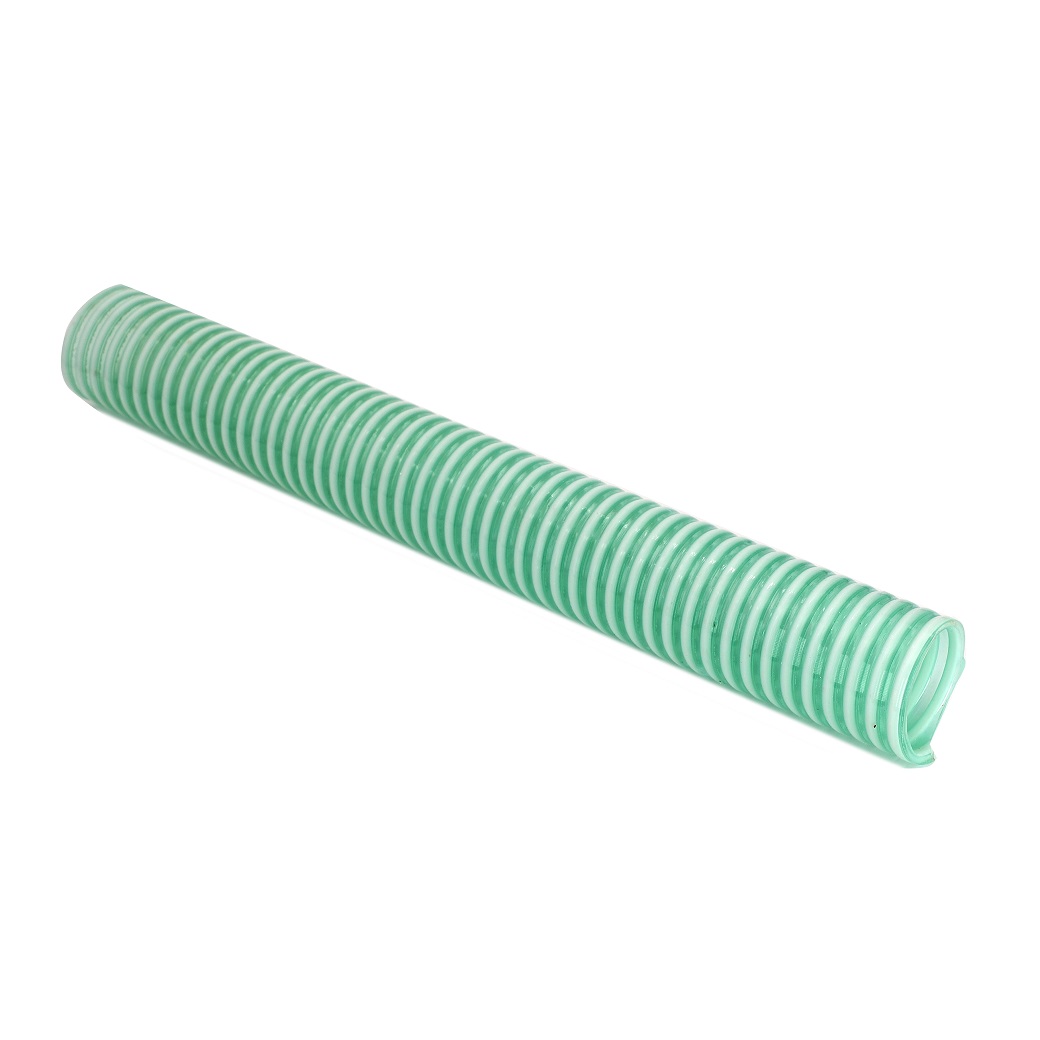

 PVC suction hose (also called PVC corrugated spiral hose or plastic helix hose) is a flexible hose extruded from a plasticized PVC tube with an embedded rigid PVC helix. Unlike the PVC steel-wire hose, this product uses rigid PVC (not steel wire) as the helix reinforcement — lighter weight and more economical while maintaining good vacuum resistance so it does not collapse under pump suction. Corrugated outer wall, smooth inner wall, small bending radius. Working pressure 2-8 bar, burst pressure 3× W.P., temperature range -10°C to +65°C. Widely used for pump suction/discharge, agricultural irrigation, sewage transfer, powder/granule conveying and ventilation/dust collection. Orange is standard; yellow, green, blue, white and red also available. Sizes 3/4" to 12", in 10m/20m/30m/50m rolls; quick couplings and clamps available.

Product Features

1、Rigid PVC helix — vacuum-resistant, no collapse or kink.

2、20% lighter than PVC steel-wire hose — easier handling.

3、Economical and cost-effective — ideal for bulk use.

4、Corrugated outer wall, smooth inner wall — high flow efficiency.

5、Lightweight, small bending radius — suits tight installations.

6、Anti-aging and weather-resistant — suitable for outdoor use.

7、Resistant to weak acids/alkalis — handles water, oil, powders and granules.

8、Multiple colors (orange/yellow/green/blue/white/red) — customizable.

通用技术规格 / General Specifications
