PVC LAYFLAT HOSE

Product Profile

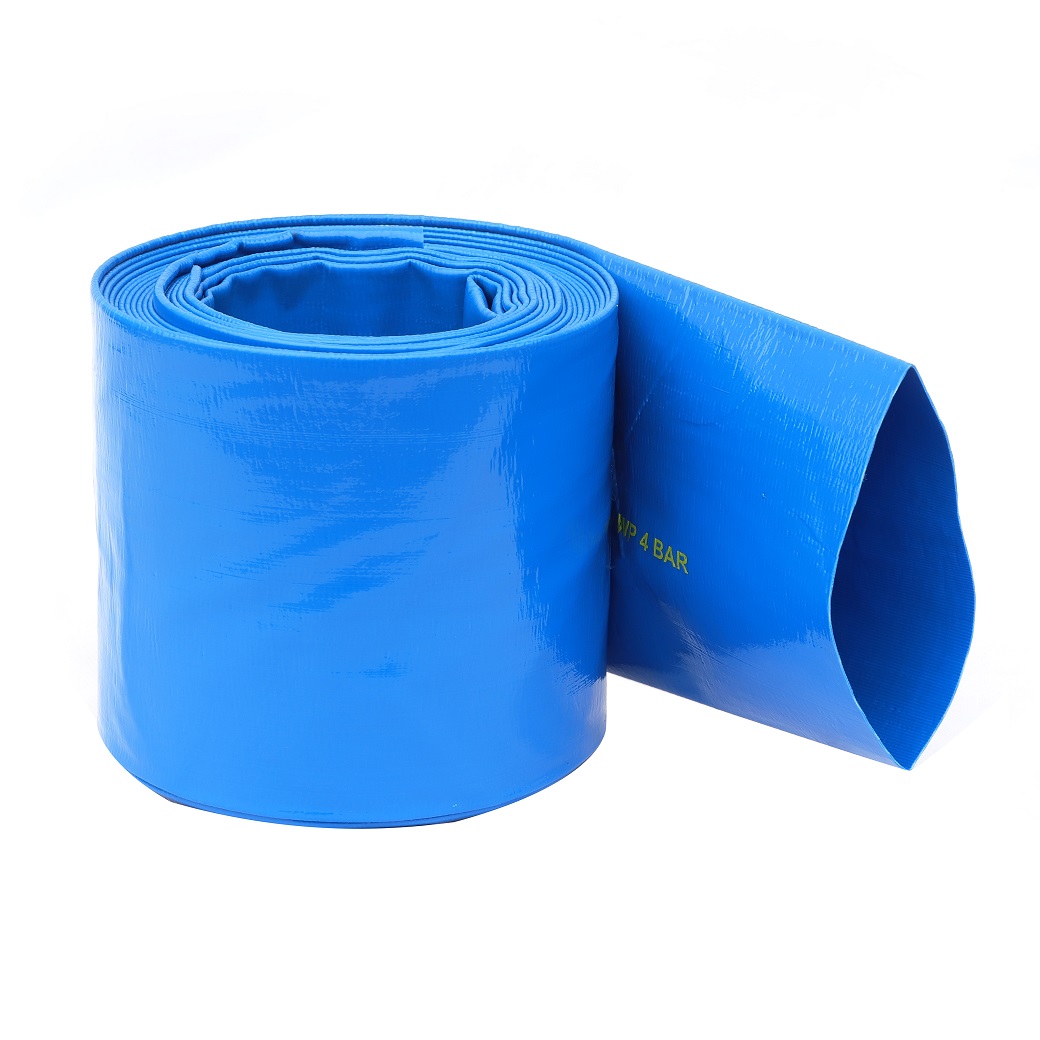

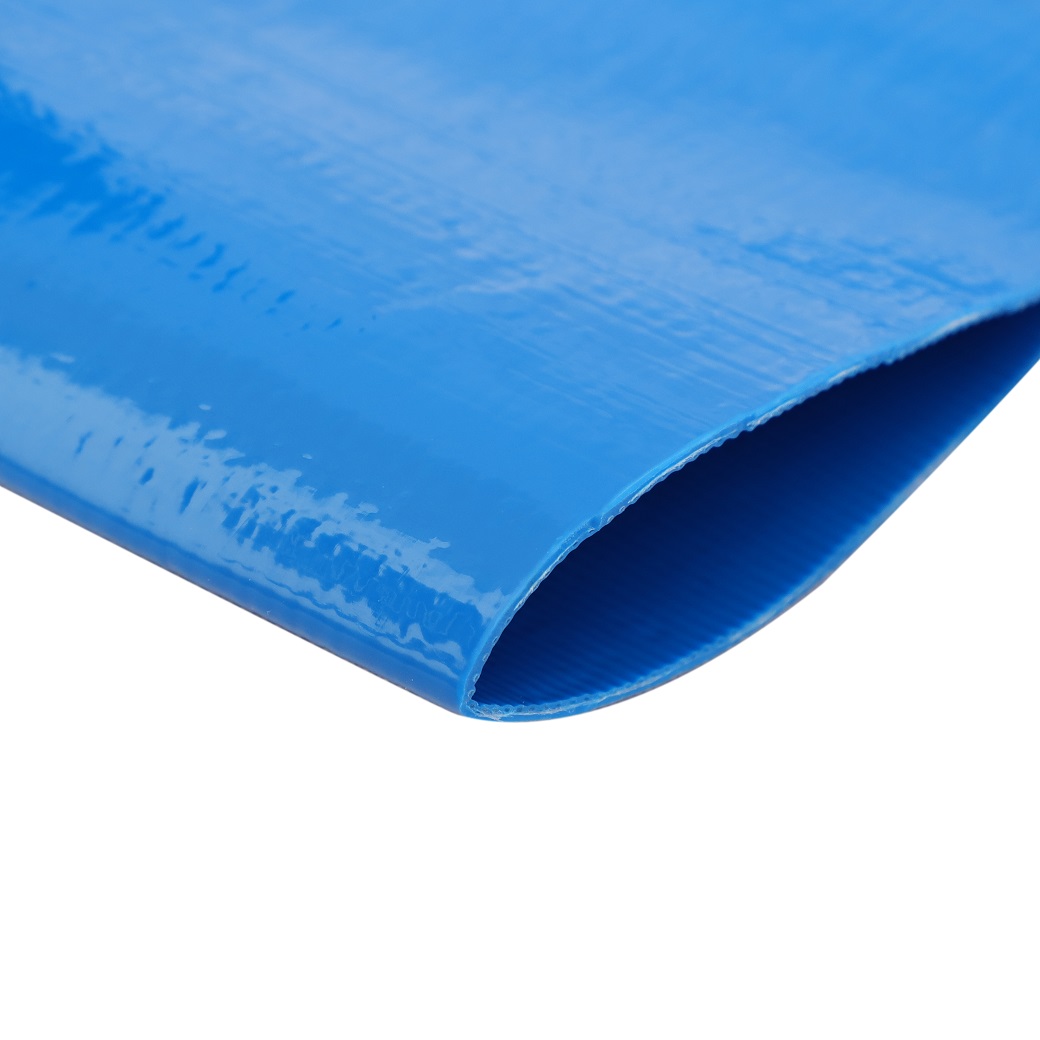

PVC layflat hose is a flexible water delivery hose constructed with high-strength polyester filament reinforcement and PVC paste resin coating, formed in one high-temperature process. It features light weight, small bending radius, pressure and abrasion resistance, anti-aging, non-cracking and easy handling. Working pressure 2/3/4/6/8 bar in 5 grades; burst pressure 3× W.P.; temperature range -5°C to +65°C. Widely used in agricultural irrigation, pump discharge, construction, municipal firefighting and mine slurry transfer. Widely used in agricultural irrigation (farm sprinkler, drip, pump truck water transfer), pump drainage, municipal construction, mine slurry transfer, temporary construction water supply, landscaping, pool/water feature drainage, etc. 1"-3" small sizes suit home use, small pumps and garden irrigation; 4"-6" medium sizes suit large farm irrigation and construction dewatering; 8"-12" large sizes suit mines, municipal flood control and large water projects.

Product Features

1. High-strength polyester filament braid reinforcement — high pressure & impact resistance.

2. Smooth inner & outer PVC coating — high flow efficiency.

3. Lightweight, flexible and easy to roll — labor-saving handling.

4. Anti-aging and weather-resistant — long outdoor service life.

5. Resistant to weak acids/alkalis — handles liquid fertilizer and mild chemicals.

6. Multiple colors (blue/yellow/red/green/black) — customizable.

7. Aluminum/plastic cam-lock couplings available — quick connect/disconnect.

通用技术规格 / General Specifications
