Product Profile

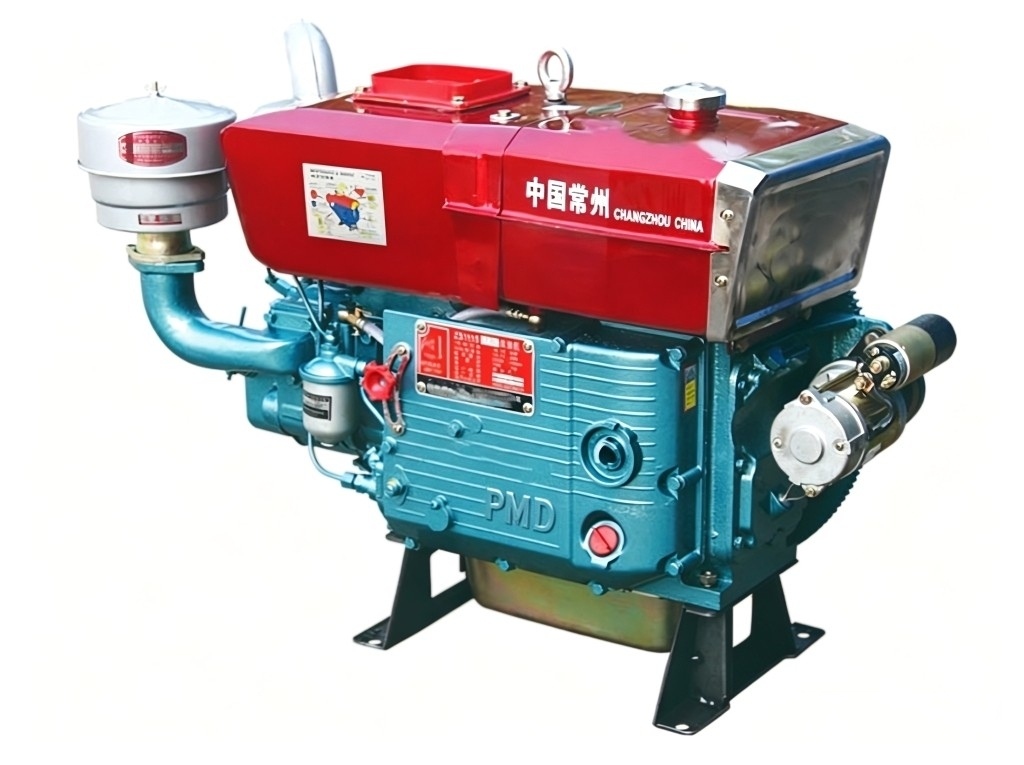

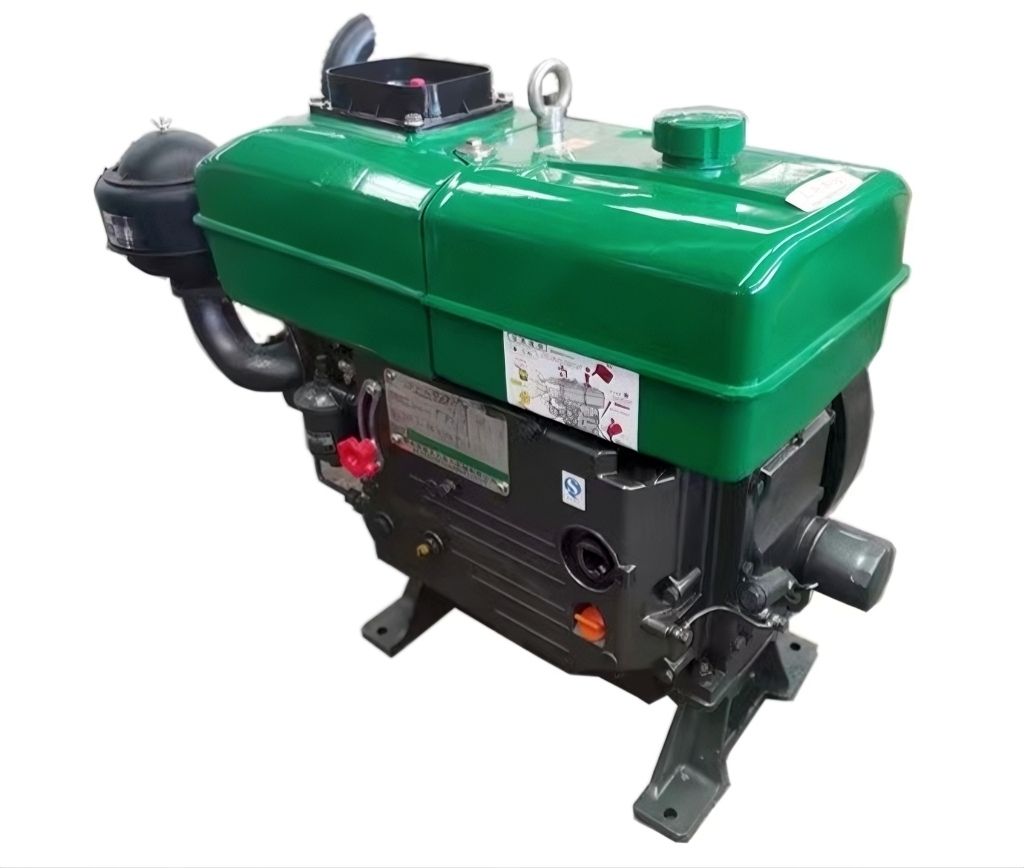

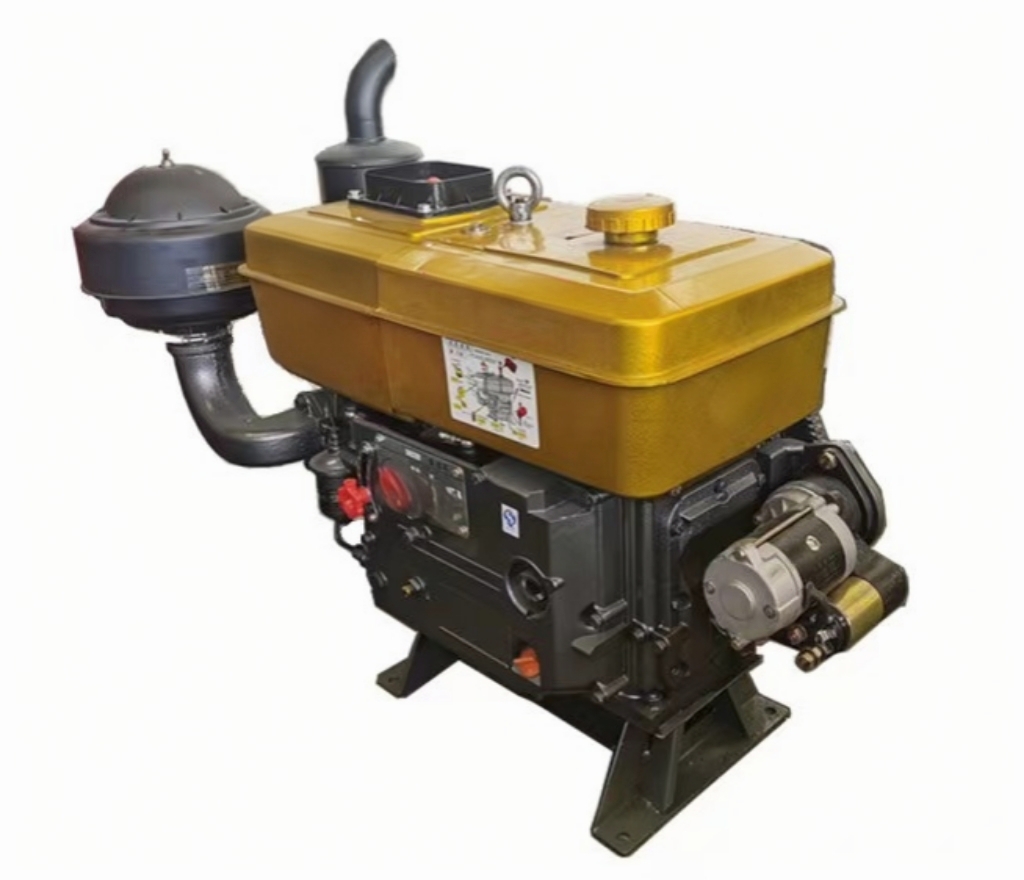

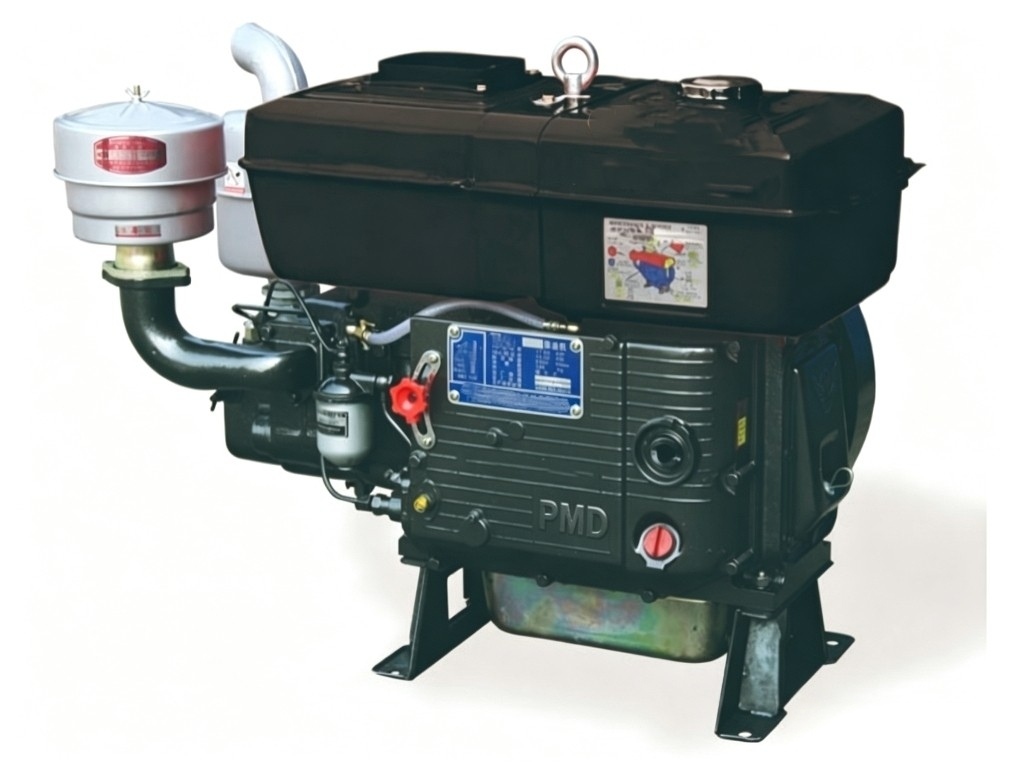

The S & ZS single-cylinder water-cooled diesel engine series covers 0.815–1.789 L displacement and 10.6–25 kW power range, Widely used in walking tractors, various transportation machinery, water pump units, irrigation machinery, agricultural machines, mining equipment, construction machinery, generator sets, small engineering machinery and other fields.
Common Specifications
Engine type: Single-cylinder, horizontal, evaporative water-cooled, four-stroke
Combustion chamber type: Swirl type (S195 / S1100), Direct-injection (other models)
Rotation speed: 2200 r/min
Max. torque point speed: ≤1760 r/min
Idle speed: ≤800 r/min
Starting mode: Hand start or Electric start
Product Features
1. Fuel-saving, easy to start.
2. Complete product series, mature technology and excellent general interchangeability.
主要技术参数 / Main Specifications
|
项目 Items |
(Z)S195 |
(Z)S1100 |
ZS1100 |
ZS1105(G) |
ZS1110 |
ZS1115 |
ZS1125M |
ZS1130M |
ZS1135M |
|
缸径 Cylinder dia. (mm) |
95 |
100 |
100 |
105 |
110 |
115 |
125 |
130 |
135 |
|
行程 Stroke (mm) |
115 |
115 |
115 |
115 |
115 |
115 |
120 |
125 |
125 |
|
排量 Displacement (L) |
0.815 |
0.903 |
0.903 |
0.996 |
1.093 |
1.194 |
1.473 |
1.659 |
1.789 |
|
标定功率 Rated power (kW) |
10.6 |
12.1 |
12.1 |
13.2 |
14.7 |
16.2 |
20 |
23 |
25 |
|
最大扭矩 Max. torque (N·m) |
≥51.6 |
≥58.8 |
≥58.8 |
≥64 |
≥71.5 |
≥78.8 |
≥97.2 |
≥111.8 |
≥121.5 |
|
净重 Net Weight (kg) |
145 |
155 |
155 |
155 |
165 |
165 |
180 |
180 |
200 |
|
包装尺寸 Overall (L×W×H） (cm) |
77×44×72 |
77×44×72 |
77×44×72 |
77×44×72 |
77×44×72 |
77×44×72 |
92×44×76 |
92×44×76 |
92×44×76 |
|
20尺柜装柜数量 QTY/20GP （sets) |
117 |
117 |
117 |
117 |
117 |
117 |
96 |
96 |
96 |
Radiator type, type with light, type with small water pump etc are also available on request.
