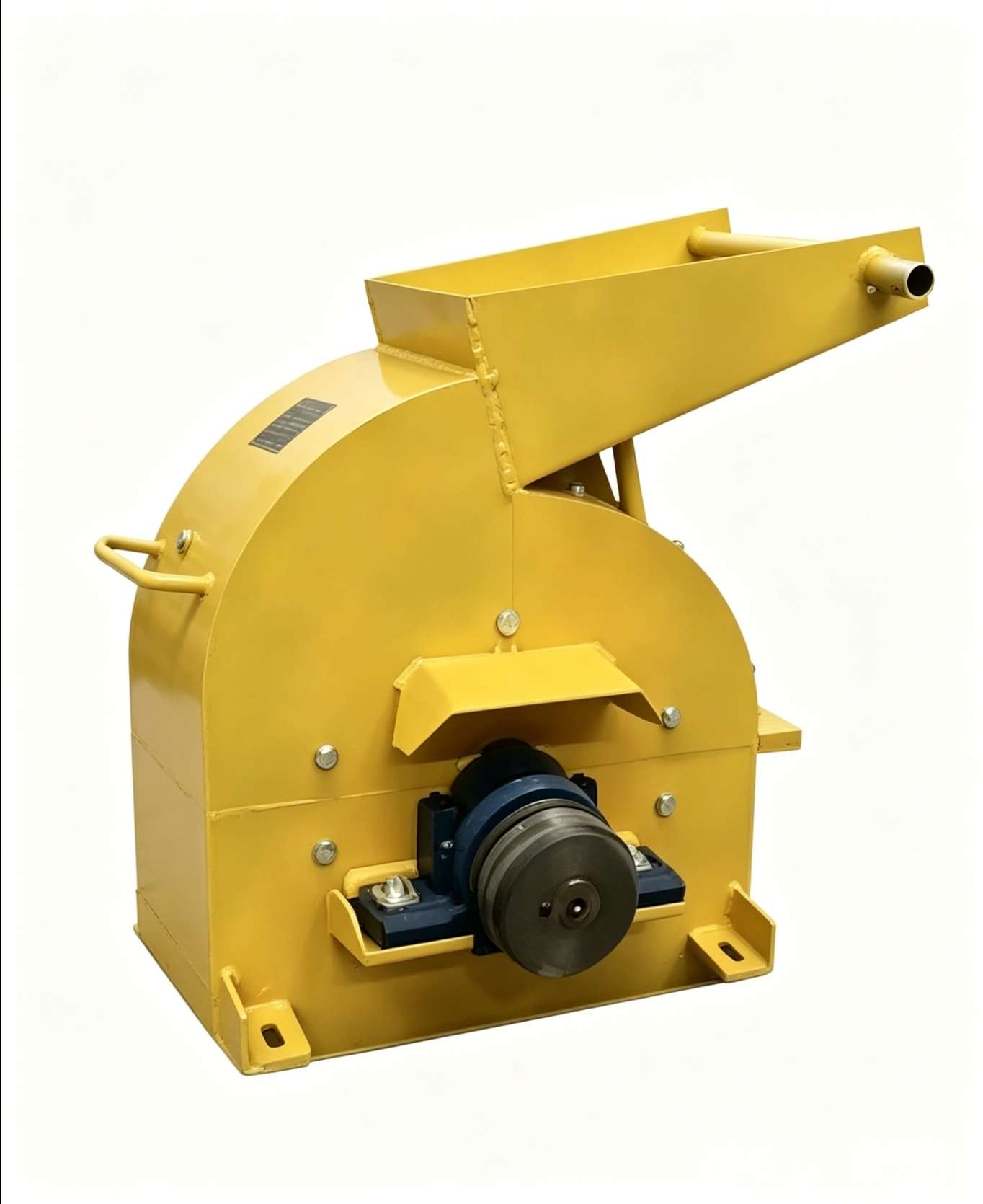

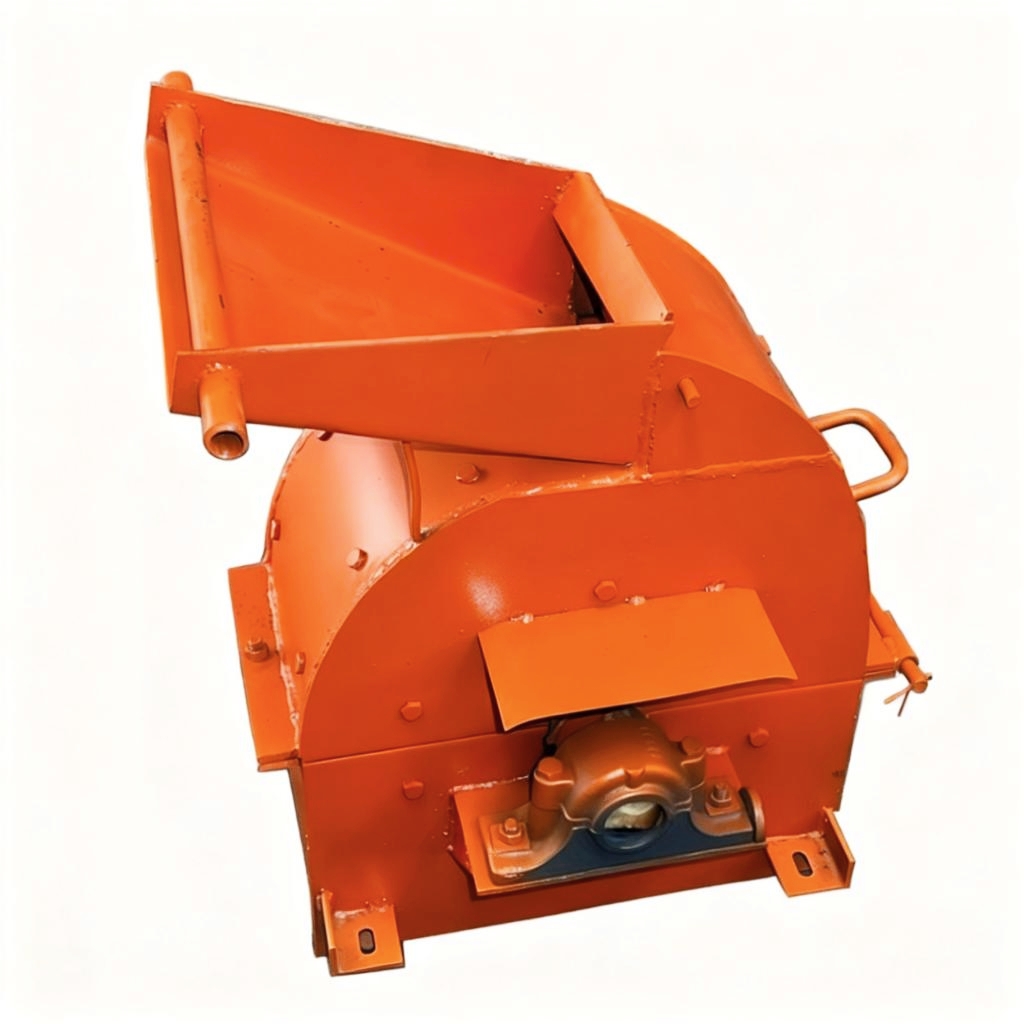

Hammer Crusher

Product Profile

This series are widely used in fine crushing of gold/tin placer ore, small quarry stone crushing, construction waste recycling, and medium-low hardness material crushing (limestone, coal, gypsum). Particularly suitable for small-scale off-grid gold mining operations in West Africa. Can be combined with gold washing mats, gold pans, and sluice boxes to form a small-scale gold mining production line..

Product Features

1. Compact and portable design, only 130kg with dimensions 630×630×700mm, single-person portable — ideal for field gold mining operations.

2. Dual drive options: electric motor (5.5-7.5kW) or diesel engine (15-24HP), suitable for off-grid field environments.

3. Six high-chrome alloy hammers, wear-resistant and easy to replace; adjustable discharge size (≥1.5mm).

4. Capacity up to 3t/h (1500-2000kg/h), feed size ≤50-70mm, one-step crushing.

5. Optional screen and mobile wheels for screening and relocation needs.

6. Designed for gold mining, also suitable for stone crushing and construction waste recycling.

主要技术参数 / Main Specifications

主要易损件 / Main Spare Parts

6/8锤头组件 6/8 Hammer : 180 and 220 model

中心轮 Central Wheel

筛板 Sieve Plate 1.6mm/2.0mm/2.5mm/3.0mm/4.0mm etc.

轴承和轴承座 Bearing & Bearing Block

皮带轮 Pulley

All spare parts for hammer crusher are also available.
