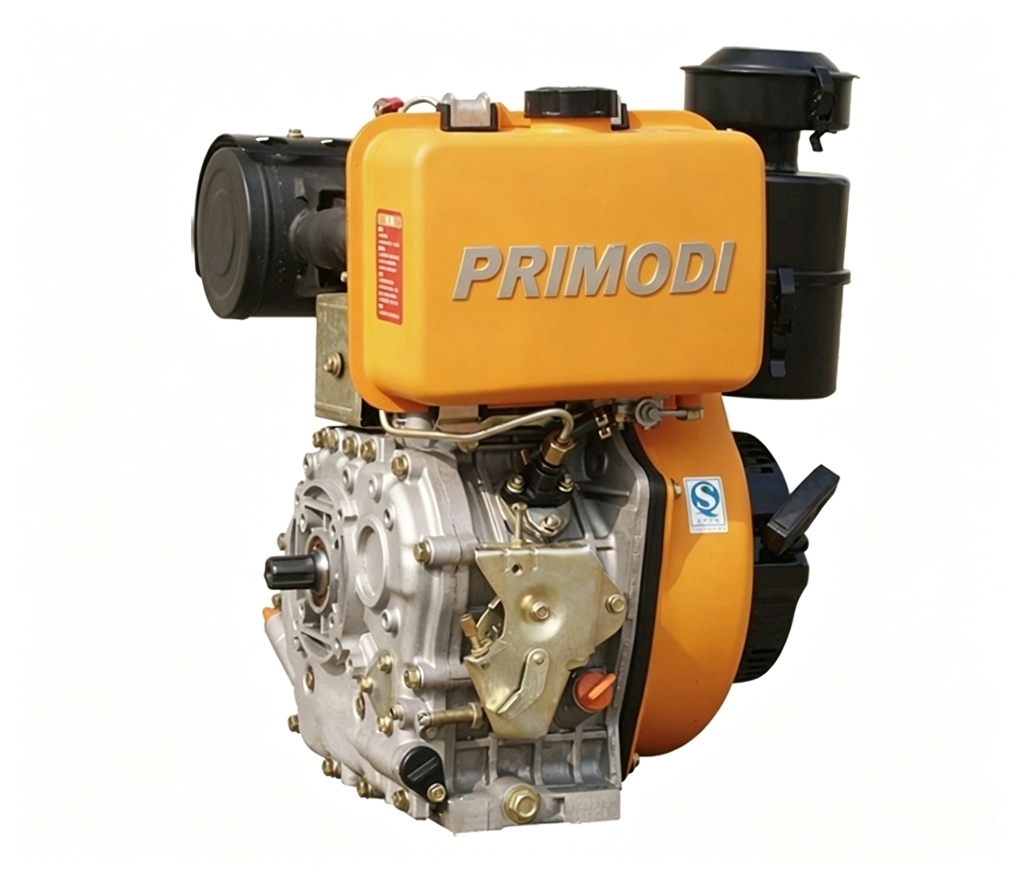

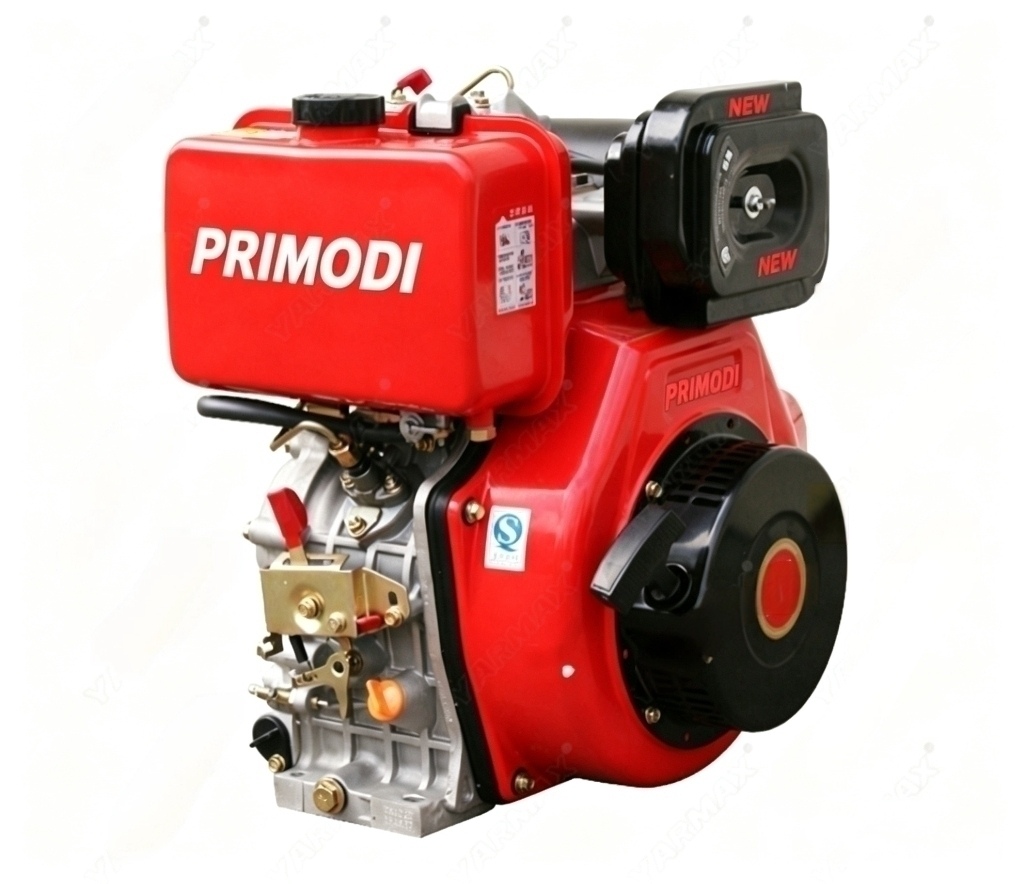

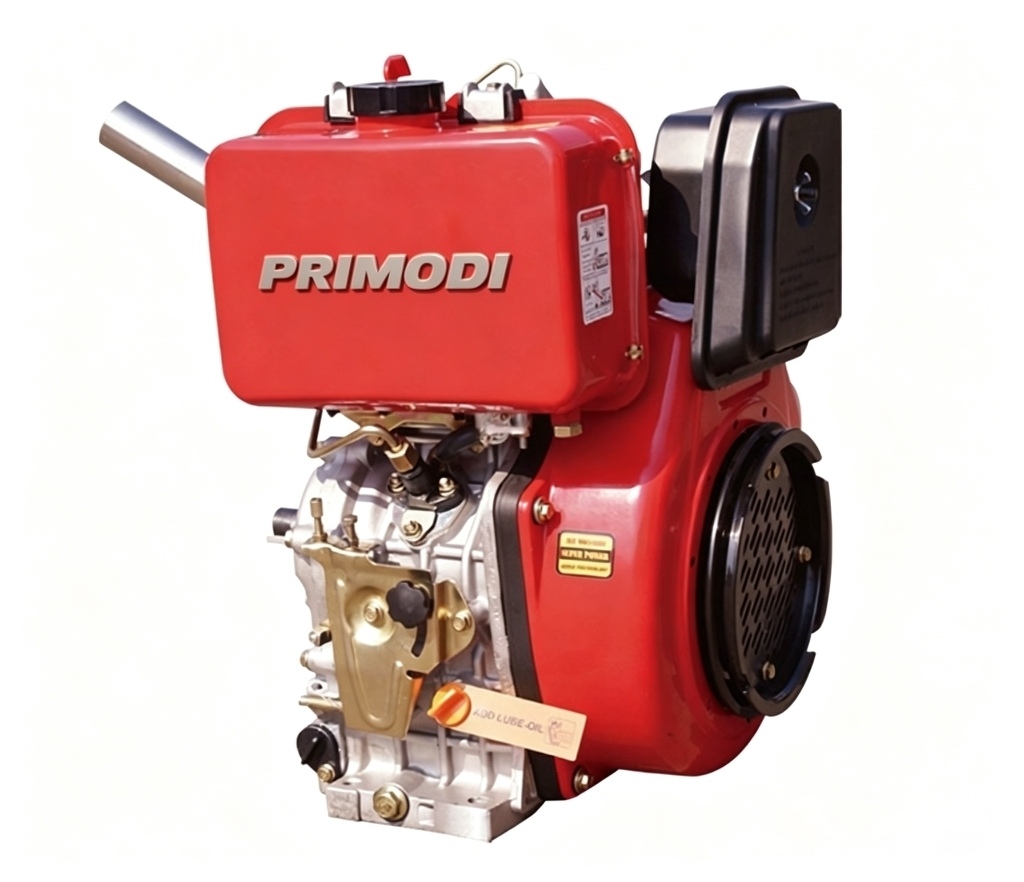

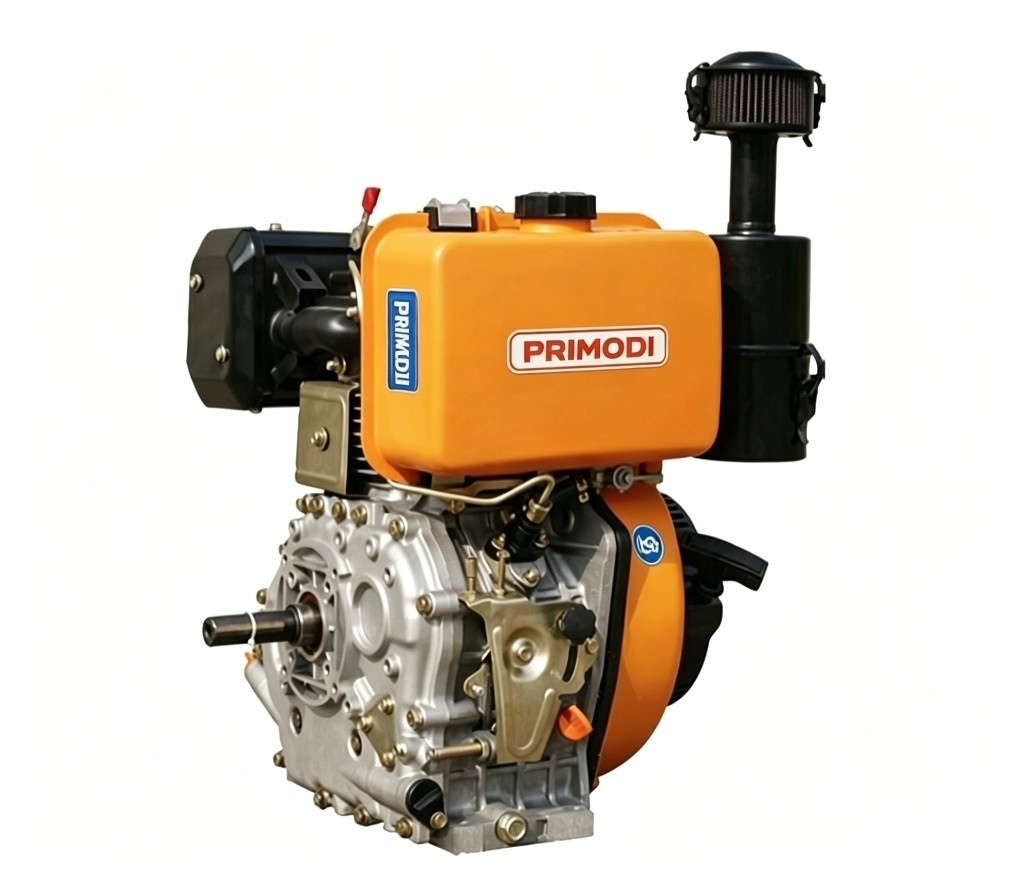

Single-Cylinder Air-Cooled Diesel Engine

参数

Parameter

170F

173F

178F

186F

186FA

188F

190F

192F

195F

1100FE

1105FE

1115FE

型式

Type

Single cylinder, vertical, four-stroke, direct injection, air-cooled

单缸、立式、四冲程、直喷、风冷

缸径×行程

Bore×Stroke (mm)

70×59

73×59

78×62

86×70

86×72

88×75

90×75

92×75

95×75

100×85

105×85

115×88

排量

Displacement (mL)

227

247

296

406

418

456

477

498

532

667

736

914

压缩比

Compression Ratio

20:1

20:1

20:1

19:1

19:1

19:1

19:1

19:1

19:1

19:1

19:1

18:1

额定功率

Rated Power (kW/3000rpm)

2.7

3.5

3.7

5.5

5.7

6.5

6.7

7.6

8.1

10.5

12.0

13.5

额定功率

Rated Power (kW/3600rpm)

3.0

3.8

4.0

6.0

6.3

7.2

7.3

8.2

8.7

11.0

12.5

14.5

最大功率

Max. Power (kW/3000rpm)

3.0

3.8

4.0

6.0

6.3

7.2

7.4

8.4

8.7

11.0

13.0

14.5

最大功率

Max. Power (kW/3600rpm)

3.5

4.0

4.4

6.5

6.9

7.9

8.0

9.0

9.5

11.5

13.5

14.5

额定功率

Rated Power (HP/3000rpm)

3.6

4.8

5.0

7.5

7.8

8.8

9.1

10.3

11.0

14.3

16.3

18.3

额定功率

Rated Power (HP/3600rpm)

4.1

5.2

5.4

8.2

8.6

9.8

10.0

11.2

11.8

15.0

17.0

19.8

额定转速

Rated Speed (r/min)

3000 / 3600

最低空载稳定转速

Lowest Idle (r/min)

≤1300

润滑方式

Lubrication

Pressure splash 压力飞溅复合式

启动方式

Start System

Recoil / Electric 手拉启动或电启动

Electric Starter 电启动

旋转方向

Rotation Direction

Anticlockwise (Face to the output axle)

 逆时针(面对输出轴)

燃油

Fuel

0#(夏)/-10#(冬)/-35#(极寒) diesel 柴油

油箱容量

Fuel Tank (L)

2.5

2.5

3.5

5.5

5.5

5.5

5.5

5.5

5.5

5.5

6.5

9.0

燃油消耗率

Fuel Consump.

(g/kW·h / rpm)

280.2/3000
288.3/3600

276.1/3000
285.6/3600

275.1/3000
281.5/3600

275.1/3000
281.5/3600

275.1/3000
281.5/3600

275.1/3000
281.5/3600

275.1/3000
281.5/3600

275.1/3000
281.5/3600

260/3000
280/3600

260/3000
280/3600

260/3000
280/3600

260/3000
280/3600

机油等级

Lube Oil

CD grade or SAE 10W-30, 15W-40

机油容量

Lube Oil Cap. (L)

0.75

0.75

1.1

1.65

1.65

1.65
