Product Profile

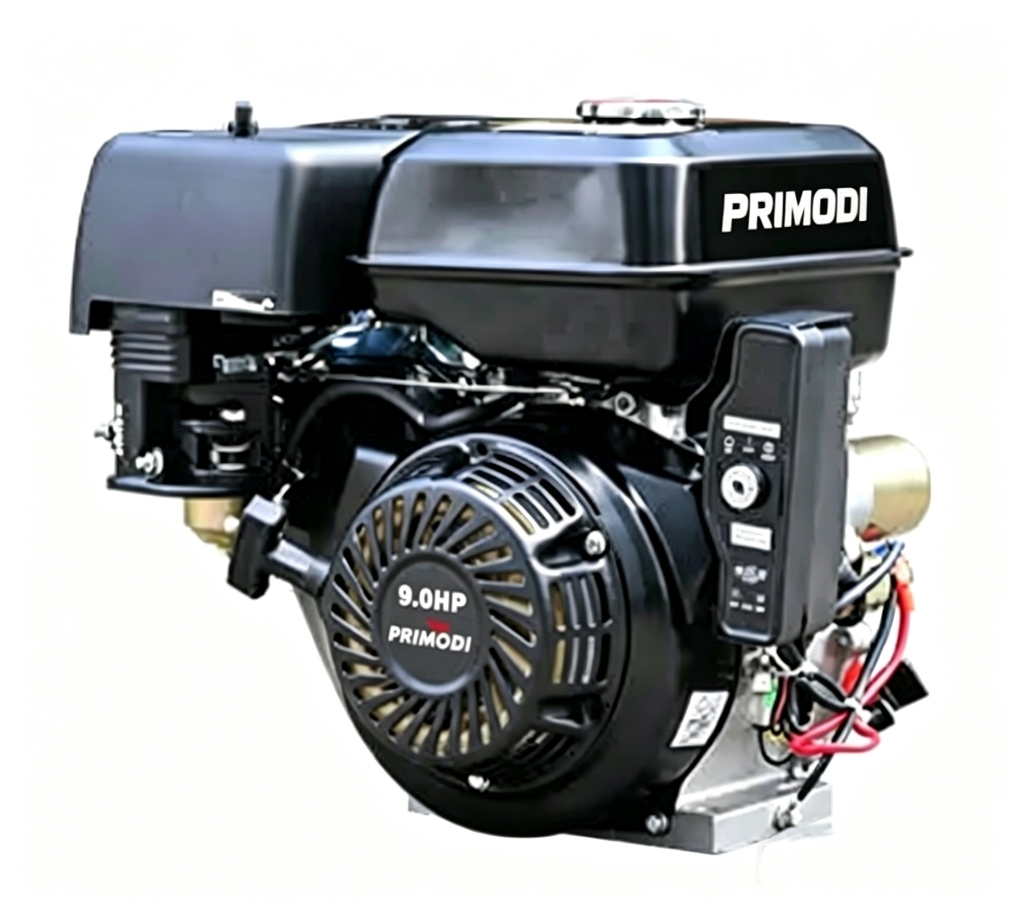

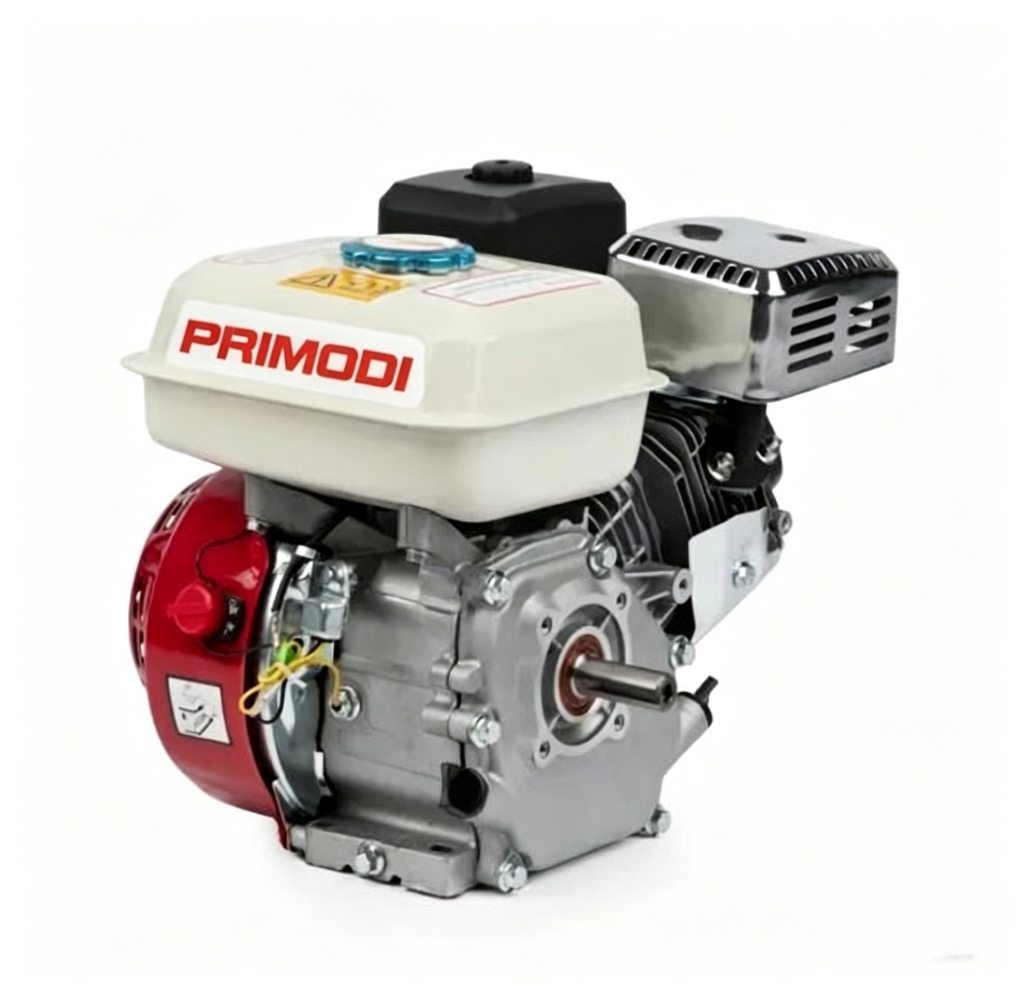

This series covers single-cylinder air-cooled 4-stroke OHV gasoline engines from 6.5 to 15 HP (196–420 cc), compatible with Honda GX200–GX420 platforms. Featuring T.C.I. transistor magneto ignition, recoil or electric start options,idely used in gasoline water pump units, gasoline generator sets, garden machinery (lawn mowers, power sprayers, cutters), small construction machinery (plate compactors, road cutters), agricultural machinery (tillers, harvesters, rice mills) and other applications requiring small power units.
Product Features
5. Low-oil protection (optional), ball-bearing supported crankshaft, reduced mechanical noise.
主要技术参数 / Main Specifications
|
项目 / Items |
168F-1 |

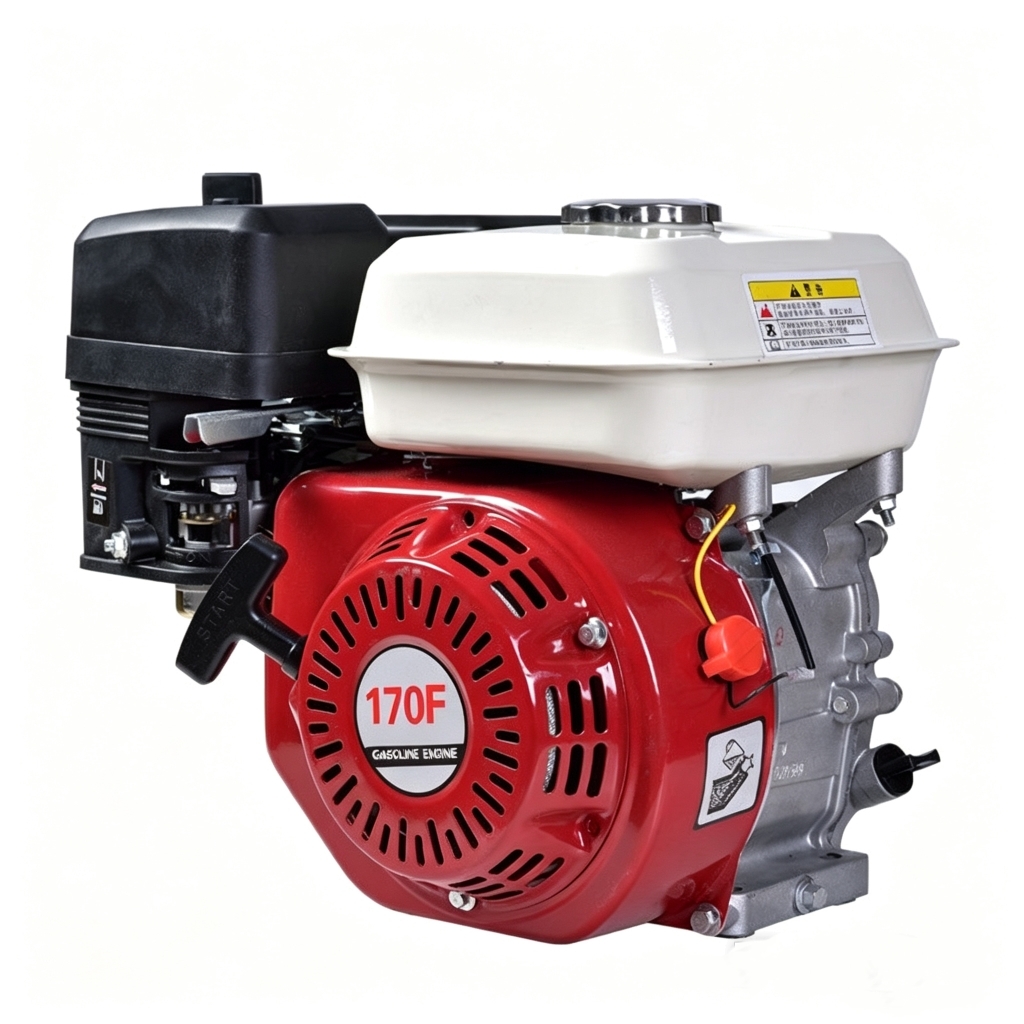

170F |
173F |
177F |
182F |
188F |
190F |
|
输出马力 Output (HP) |
6.5 |
7.0 |
8.0 |
9.0 |
11.0 |
13.0 |
15.0 |
|
对应本田平台 Honda equiv. |
GX200 |
GX210 |
GX240 |
GX270 |
GX340 |
GX390 |
GX420 |
|
发动机型式 Engine type |
单缸、风冷、四冲程、OHV / Single-cylinder, air-cooled, 4-stroke, OHV |
||||||
|
排量 Displacement (cc) |
196 |
212 |
242 |
270 |
337 |
389 |
420 |
|
缸径×行程 Bore×Stroke (mm) |
68×54 |
70×55 |
73×58 |
77×58 |
82×64 |
88×64 |
90×66 |
|
压缩比 Compression ratio |
8.5:1 |
8.5:1 |
8.5:1 |
8.2:1 |
8.0:1 |
8.0:1 |
8.0:1 |
|
最大功率 Max. power (kW) |
4.8 |
5.1 |
5.9 |
6.6 |
8.1 |
9.6 |
11.0 |
|
额定功率 Rated power (kW) |
4.3 |
4.4 |
5.1 |
5.5 |
6.8 |
8.6 |
9.6 |
|
额定转速 Rated speed (rpm) |
3600 |
||||||
|
最大扭矩 Max. torque (N·m) |
11 |
12 |
14 |
16 |
19 |
21 |
23 |
|
点火系统 Ignition |
T.C.I. 晶体管磁电机 / Transistor magneto |
||||||
|
起动方式 Starting |
手拉起动 / 电起动（可选）/ Recoil or electric start (optional) |
||||||
|
燃油 Fuel |
无铅汽油 / Unleaded gasoline |
||||||
|
燃油箱容量 Fuel tank (L) |
3.6 |
3.6 |
3.6 |
6.5 |
6.5 |
6.5 |
6.5 |
|
机油容量 Oil capacity (L) |
0.6 |
0.6 |
0.6 |
1.1 |
1.1 |
1.1 |
1.1 |
|
机油规格 Oil grade |
SAE 10W30（CC 级以上）/ SAE 10W30 (above CC grade) |
||||||
|
燃油消耗 Fuel consumption (g/kW·h) |
395 |
395 |
395 |
374 |
374 |
374 |
370 |
|
输出轴转向 PTO rotation |
左旋（从输出轴端看）/ Counter-clockwise (viewed from shaft end) |
||||||
|
毛重 G.W. (kg) |
16 |
17 |
19 |
28 |
30 |
33 |
34 |
|
外形尺寸 L×W×H (mm) |
390×330×340 |
390×330×350 |
400×340×360 |
455×415×430 |
480×430×450 |
505×415×475 |
505×415×475 |
