Product Profile

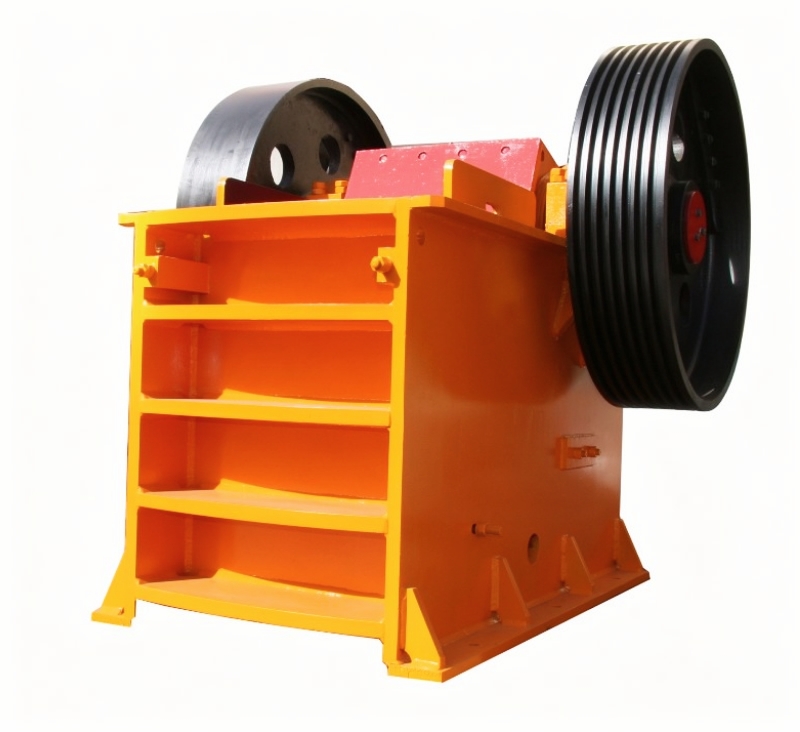

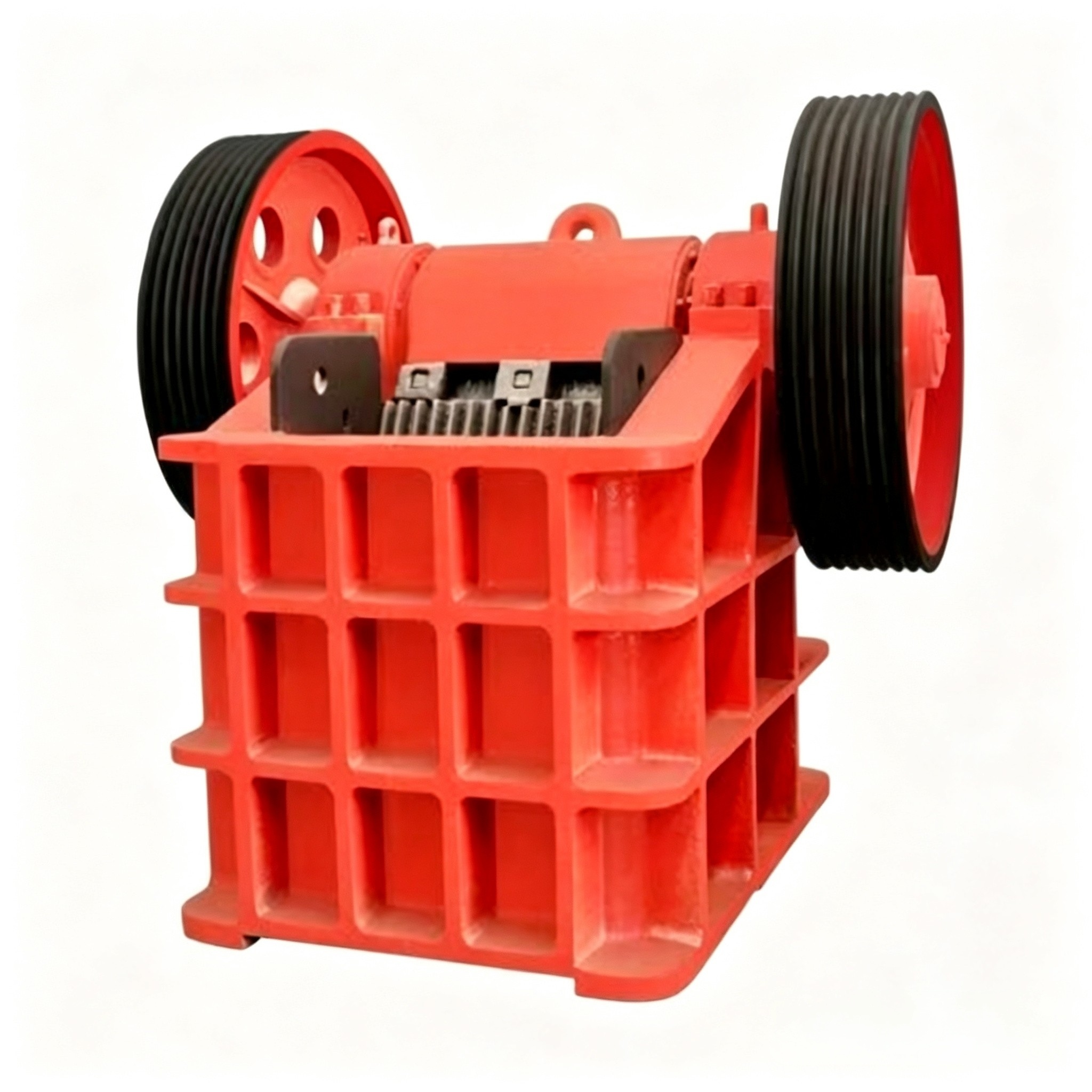

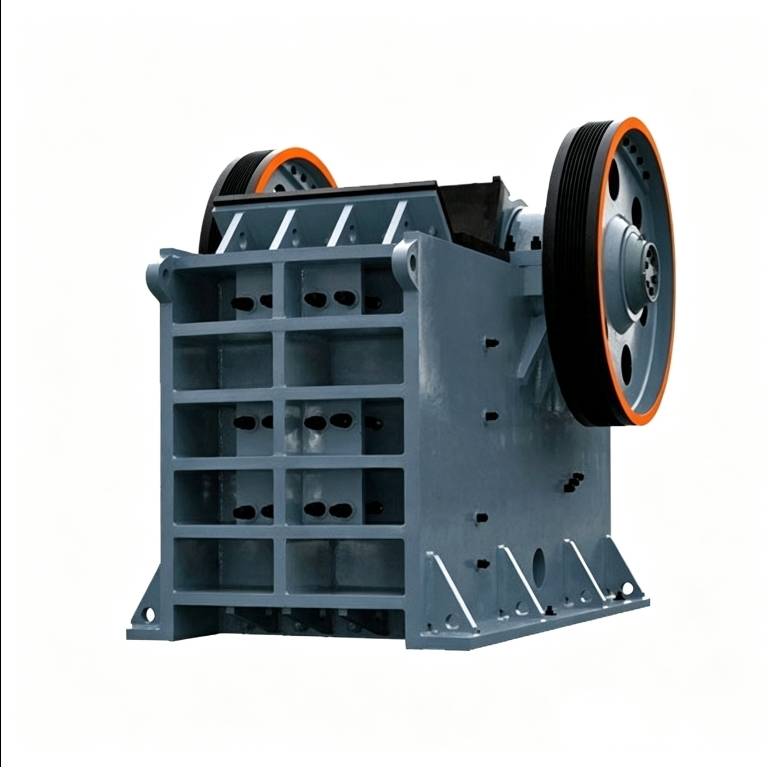

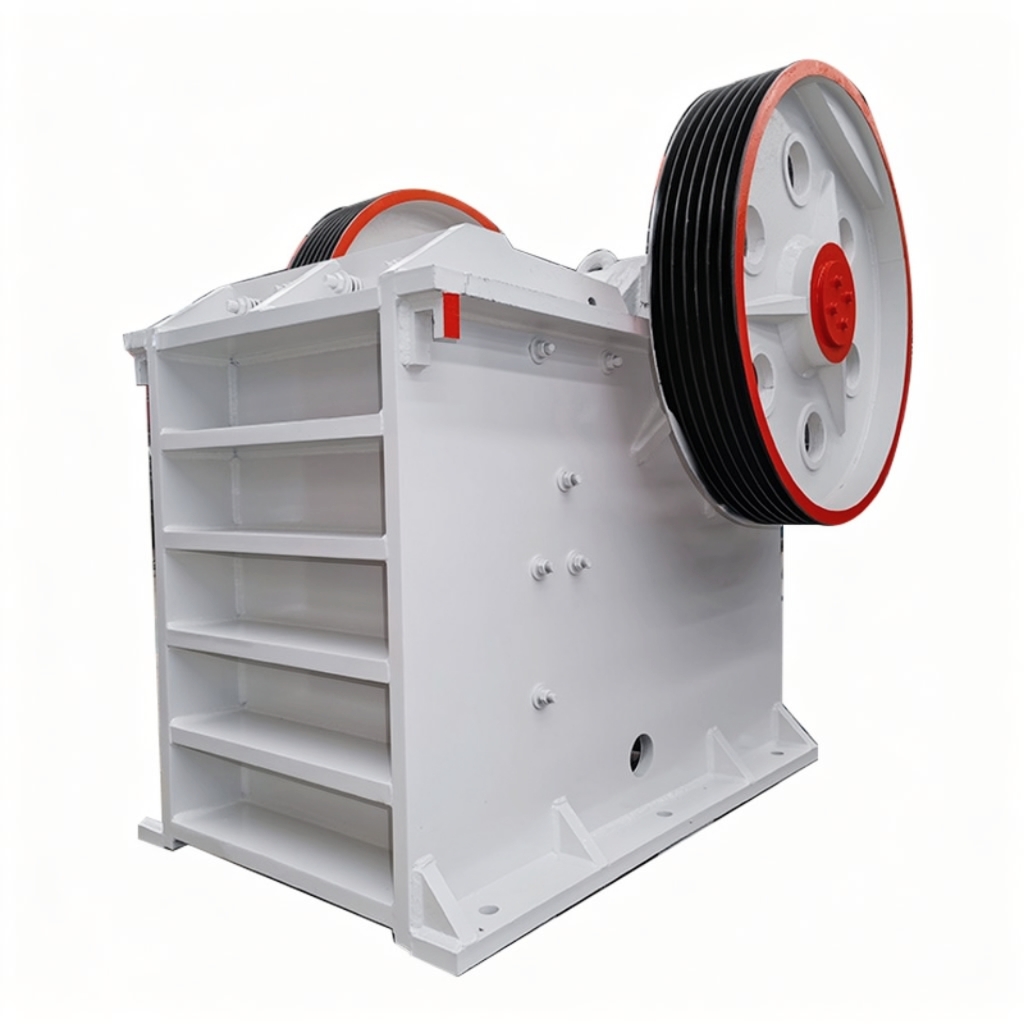

The PE series jaw crusher is one of the earliest and most widely used crushing machines, featuring simple structure, reliable operation, easy maintenance and low operating cost. An electric motor drives the eccentric shaft via belt pulley, causing the movable jaw to swing back and forth and crush materials. Suitable for primary and secondary crushing of ores and rocks with compressive strength up to 300MPa.
This series is widely used in mining, quarries, metallurgy, building materials, highways, railways, water conservancy and chemical industries for primary and secondary crushing. PE-150×250 to PE-250×400 suit small quarries, gold ore fine crushing and construction waste recycling; PE-300×500 to PE-600×900 suit medium quarries and mine primary crushing. Particularly suited to small-scale gold mining, sand & gravel processing and construction waste recycling in West Africa; compact models can run off-grid with diesel engines.
Product Features
1. Simple structure, reliable operation, easy maintenance.
2. Large crushing ratio, uniform discharge, good product shape.
3. High manganese steel jaw plates — wear-resistant, long service life.
4. Discharge opening adjustable by shim — flexible output control.
5. One-piece cast or welded steel body — high rigidity, impact-resistant.
6. Electric motor or diesel engine — suitable for off-grid / field use.
7. Compact models are light and small-footprint; trailer-mountable.
8. Full range of 8 models, from 1 to 150 t/h — complete coverage.
项目 / Items
PE-150×250
PE-200×300
PE-220×350
PE-250×400
PE-300×500
PE-400×600
PE-500×750
PE-600×900
进料口 Feed opening (mm)
150×250
200×300
220×350
250×400
300×500
400×600
500×750
600×900
最大进料 Max feed (mm)
125
180
200
210
240
340-350
425
500
排料口 Discharge (mm)
10-40
15-50
20-60
20-60
20-65
40-100
50-180
50-180
处理能力 Capacity (t/h)
1-3
2-6
3-10
5-20
8-30
15-65
35-130
80-150
电机功率 Motor (kW)
5.5
7.5
11-15
15
22
30
45-55
75
柴油机 Diesel (HP)
7.5-10
10-15
15-20
20-25
30-40
40-50
60-75
100+
重量 Weight (t)
0.6-0.8
0.9-1.2
1.5
2.4-2.8
3.5
6.5-7
10-12
15.5-17
偏心轴转速 Speed (r/min)
280
260
260
300
275
275
275
250
适用场景 Application
小砂石场/金矿
小砂石场/金矿
小砂石场
中小砂石场
中型砂石场
中型矿山
大型砂石场
大型矿山
Small quarry / gold
Small quarry / gold
Small quarry
Medium-small quarry
Medium quarry
Medium mine
Large quarry
Large mine
