Product Profile
This series are widely used in river sand extraction, lake and reservoir desilting, placer mining (gold/tin), construction slurry transfer, port and waterway dredging, as well as small-scale sand mining and gold washing operations common in West Africa.
Product Features
1. High flow rate and high head design, suitable for river sand extraction, gold mining and dredging projects.
2. Diesel engine driven with pulley transmission, ideal for off-grid field operations in West Africa.
3. High-pressure centrifugal pump structure with abrasion-resistant wet parts, capable of handling sandy slurry.

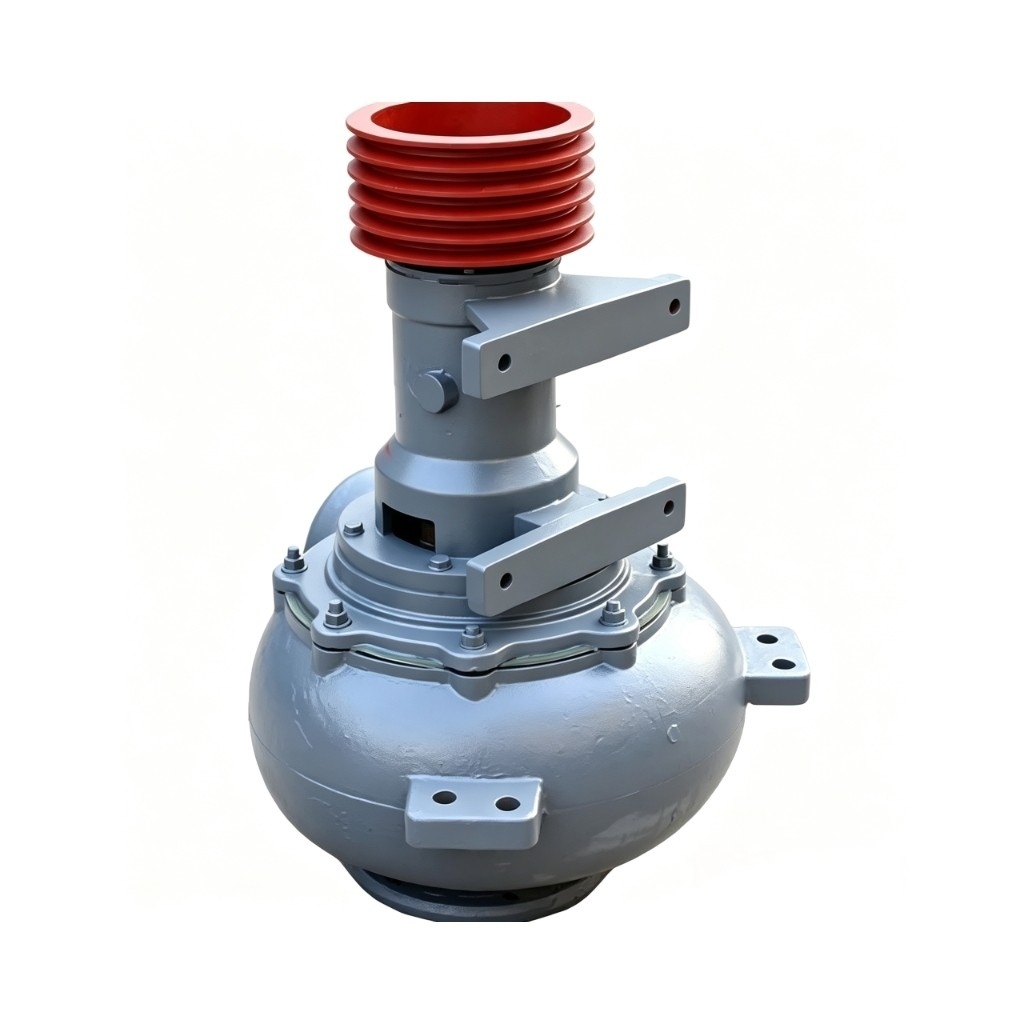

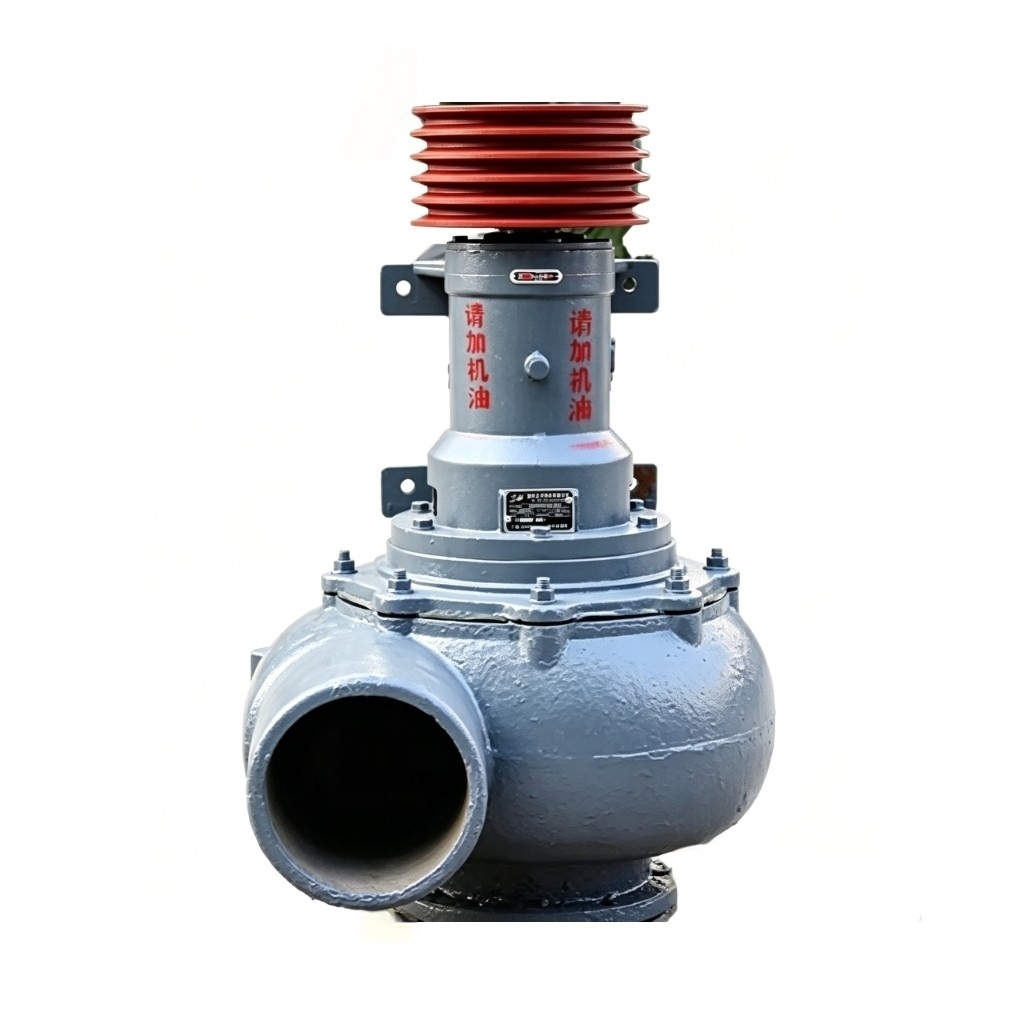

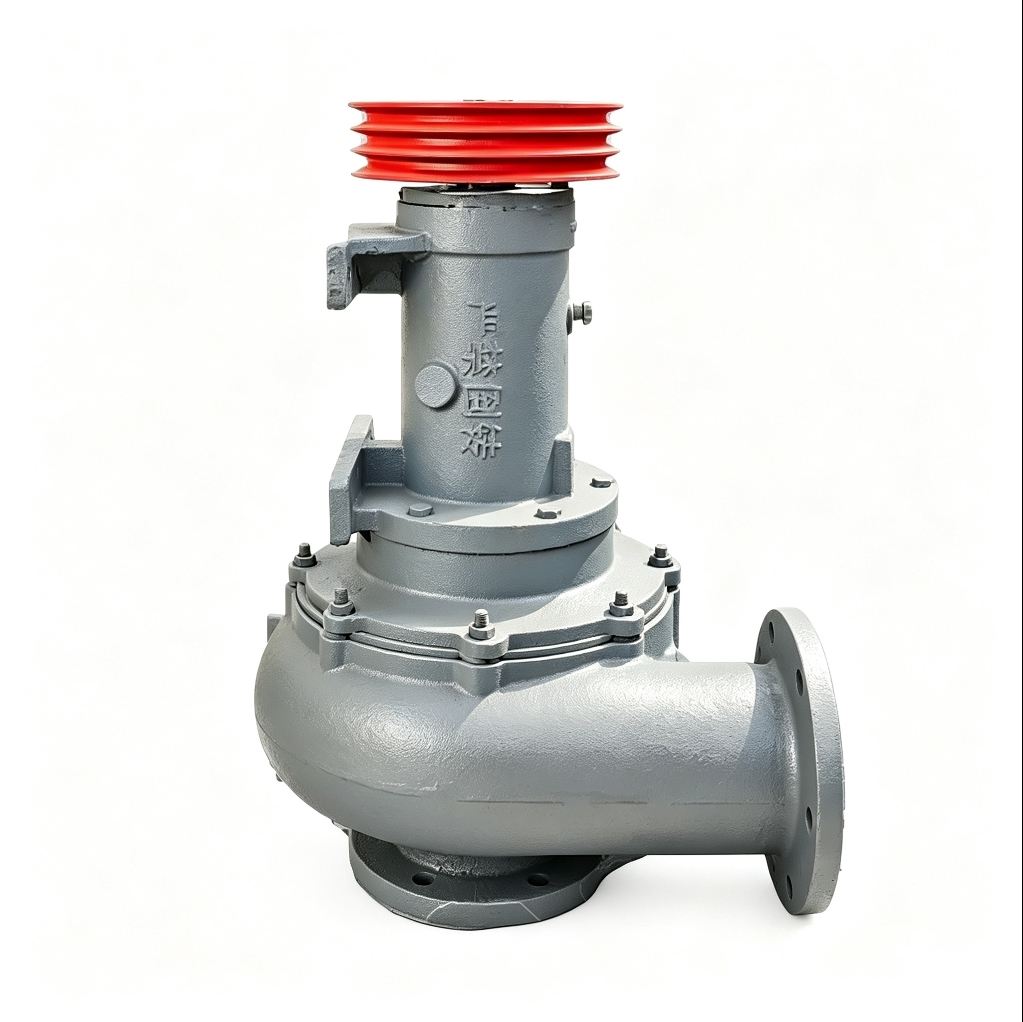

4. 4" model features vertical design; 6"/8"/10" models feature horizontal centrifugal design, covering various working conditions.
主要技术参数 / Main Specifications
|
项目 Items |
4”(100mm) |
6”(150mm) |
8”(200mm) |
10”(250mm) |
|
流量 Flow rate |
150 m³/h |
400 m³/h |
400 m³/h |
800 m³/h |
|
最大扬程 Max. head |
16 m |
28 m |
28 m |
26 m |
|
泵类型 Pump type |
离心泵 Centrifugal |
离心泵 Centrifugal |
离心泵 Centrifugal |
离心泵 Centrifugal |
|
配套动力 Power Matched |
柴油机 Diesel Engine |
柴油机 Diesel Engine |
柴油机 Diesel Engine |
柴油机 Diesel Engine |
|
配套功率 Power Required |
15 kW |
20–22 HP |
20–22 HP |
建议≥40HP） |
|
压力等级 Pressure Level |
高压 High Pressure |
高压 High Pressure |
高压 High Pressure |
高压 High Pressure |
|
应用领域 Application |
采矿行业 Mining Industry |
采矿/疏浚 Mining/Dredging |
采矿/疏浚 Mining/Dredging |
采矿/疏浚 Mining/Dredging |
All spare parts for all models of sand pumps are also available.
