SELF-PRIMING PUMP

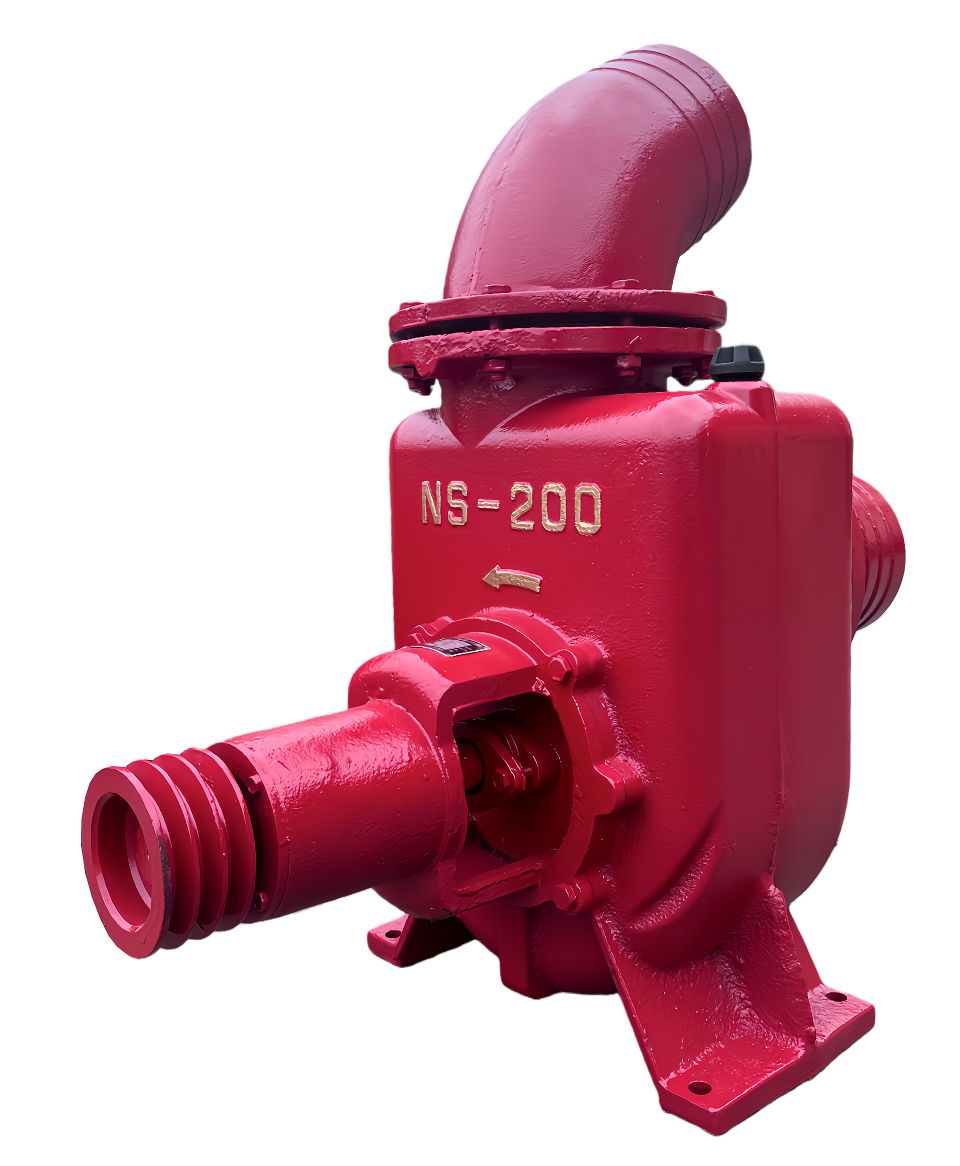

NS-200 series self-priming pump

Product description: NS-200 series self-priming pump
INQUIRY

The NS series self-priming pump is a self-priming centrifugal pump that automatically removes air from the system and starts pumping liquids without manual priming. Featuring a cast iron body and semi-open impeller, it has a compact structure, high suction head, long service life and easy maintenance. It is widely used for agricultural irrigation, river water transfer, drainage and general water supply.

Item	Specification
Model	NS-200 (8 x 8")
Inlet/Outlet Size	200 mm / 8 inch
Max. Flow Rate	350 m³/h
Max. Head	15 m
Speed	1450 r/min
Matched Power	18.5kW / 25 HP
Self-Priming Lift	6 m
Shaft Seal	Packing Seal (P)
Impeller	Semi-open, single-stage single-suction
Pump Body Material	Cast iron
Dimension	115 × 75 × 73 cm
Net Weight	105 kg
Application	Irrigation, water transfer, drainage
