Product Profile

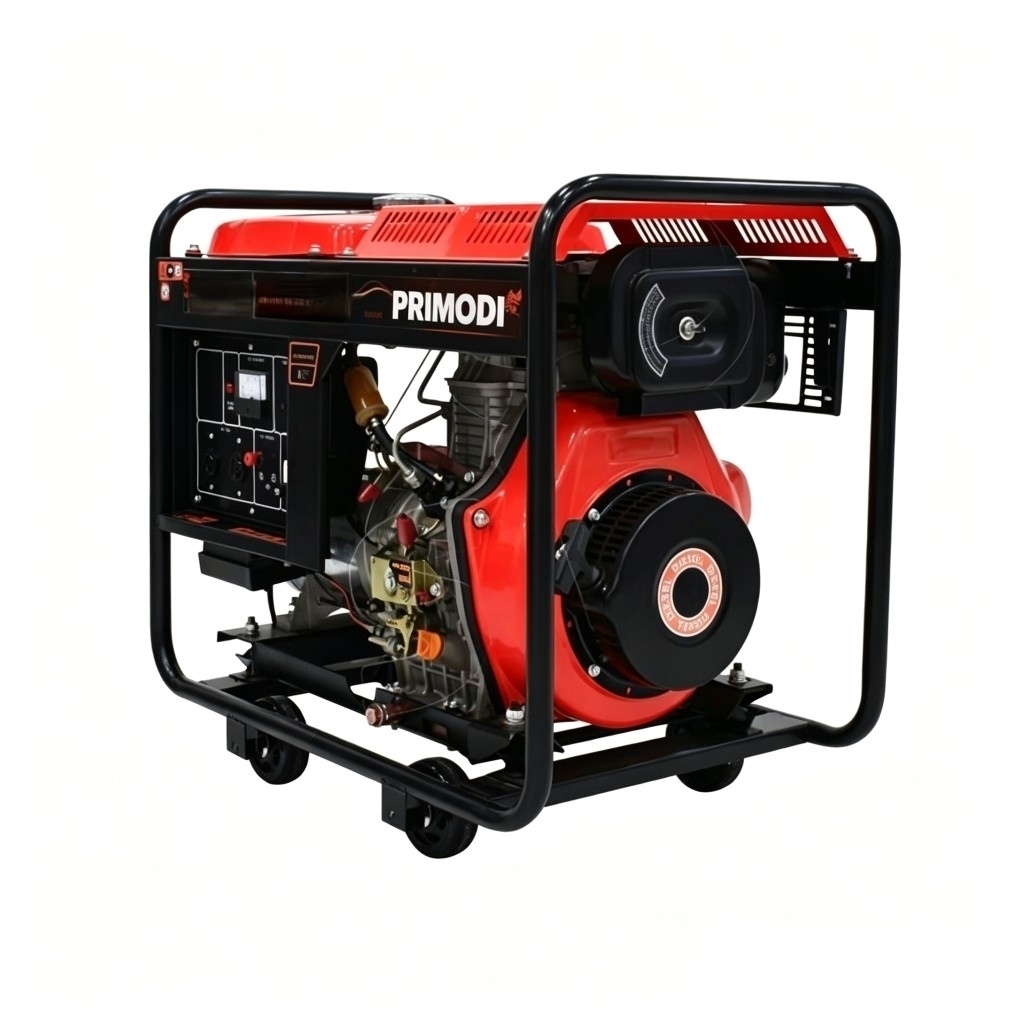

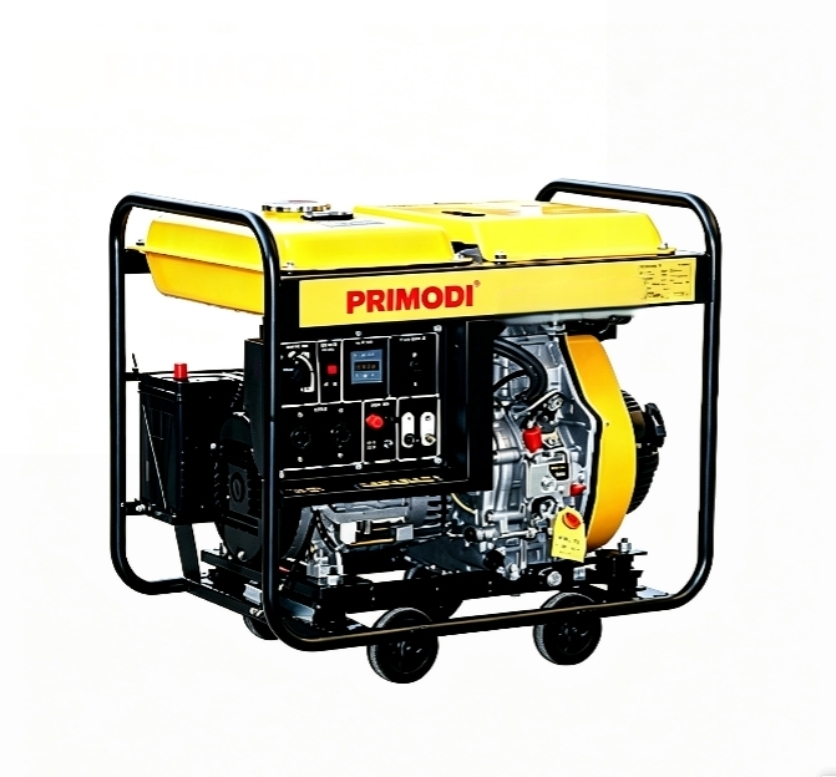

This series of open-type diesel generator sets is driven by a single-cylinder vertical, 4-stroke direct-injection air-cooled diesel engine, covering 2kW to 12kW. With self-excited constant-voltage AVR and a copper alternator, it starts easily, is fuel-efficient, reliable and easy to maintain. The open frame gives good cooling and easy service access, with movable wheels, and suits home backup, shops, construction sites, irrigation and outdoor work needing sustained power. Voltage 220V (or as requested), frequency 50/60Hz, recoil or electric start.
Product Features
1. Single-cylinder vertical, 4-stroke, direct-injection, air-cooled diesel engine: compact and fuel-saving.
2. Self-excited constant-voltage AVR for stable output.
3. Copper alternator with strong overload capacity.
4. Open frame: good cooling, easy service, movable wheels.
5. Recoil / electric start.
6. Voltage, frequency, sockets and panel customizable.
主要技术参数 / Main Specifications
|
项目 Item |
PMD-2500D |
PMD-3500DE |
PMD-6500DE |
PMD-7500DE |
PMD-8500DE |
PMD-11000DE |
PMD-16000DE |
|
额定输出 Rated Output |
2.0 kW |
2.8 kW |
5.0 kW |
5.2 kW |
6.2 kW |
8.0 kW |
12 kVA |
|
最大输出 Max. Output |
2.2 kW |
3.0 kW |
5.5 kW |
5.7 kW |
6.8 kW |
8.8 kW |
13 kVA |
|
发动机 Engine Model |
170F |
178F |
186FA |
188F |
192F |
1100F |
292F (Double-cylinder) |
|
排量 Displacement (ml) |
211 |
296 |
418 |
456 |
498 |
— |
996 |
|
发动机额定功率 Engine Rated Power (kW/rpm) |
2.8/3600 |
4.0/3600 |
6.3/3600 |
7.2/3600 |
8.2/3600 |
10.5/3600 |
14.5/3600 |
|
额定电压 Rated Voltage (V) |
110V/220V/380V/440V |
||||||
|
频率 Frequency (Hz) |
50 / 60 |
||||||
|
额定转速 Rated Speed (r/min) |
3000 / 3600 |
||||||
|
相数 Phase |
单相 Single-phase (可按要求订制三相 Three-phase is also available) |
||||||
|
功率因数 Power Factor (cosΦ) |
1 |
||||||
|
发动机型式 Engine Type |
单缸立式四冲程直喷风冷 Single Cylinder, Vertical, 4-stroke, DI, Air-cooled |
双缸风冷直喷 Twin Cylinder, Air-cooled, DI |
|||||
|
起动方式 Starting |
手拉 Recoil Start |
手拉 / 电起动 Recoil / Electric Start |
|||||
Remark: Models with bigger output up to 800kw gensets are also available.
