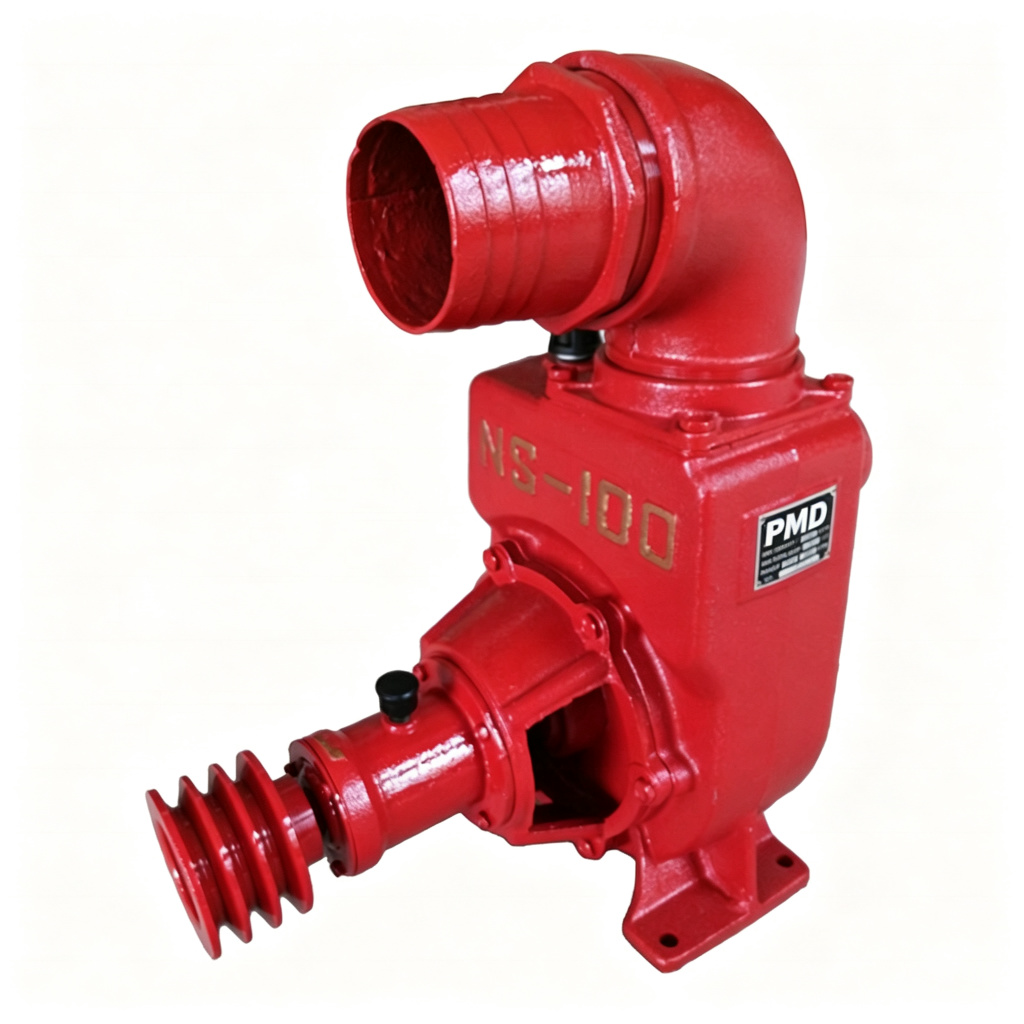

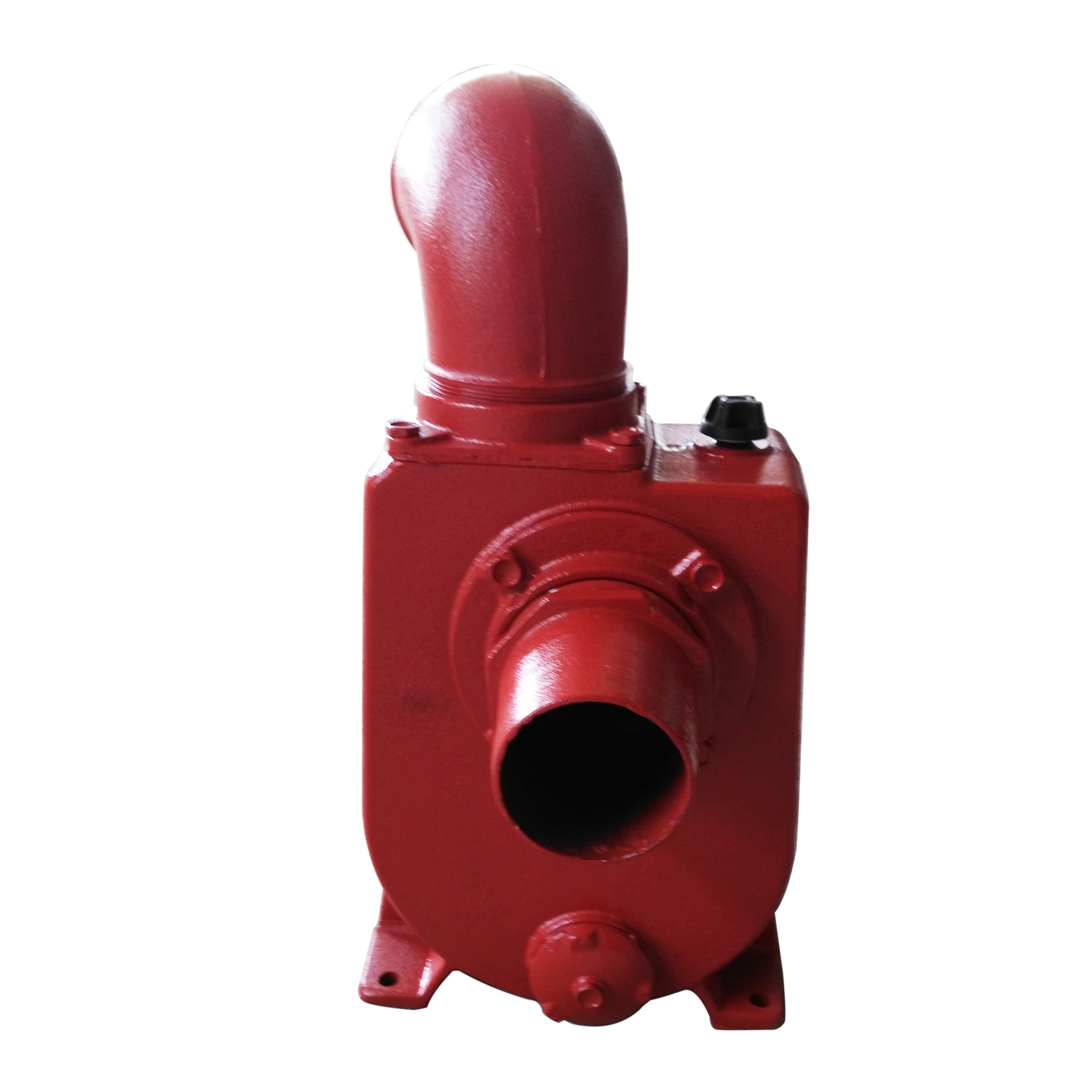

The NS series self-priming pump is a self-priming centrifugal pump that automatically removes air from the system and starts pumping liquids without manual priming. Featuring a cast iron body and semi-open impeller, it has a compact structure, high suction head, long service life and easy maintenance. It is widely used for agricultural irrigation, river water transfer, drainage and general water supply.
|
Item |
Specification |
|
Model |
NS-100 (4 x4") |
|
Inlet/Outlet Size |
100 mm / 4 inch |
|
Max. Flow Rate |
115 m³/h |
|
Max. Head |
29 m |
|
Rated Flow Rate |
86 m³/h |
|
Rated Head |
16m |
|
Speed |
2200 r/min |
|
Matched Power |
5.5 kW / 8 HP |
|
Self-Priming Lift |
8 m |
|
Shaft Seal |
Mechanical Seal (M) |
|
Impeller |
Semi-open, single-stage single-suction |
|
Pump Body Material |
Cast iron |
|
Dimension |
48 × 30 × 40 cm |
|
Net Weight |
40 kg |
|
Application |
Irrigation, water transfer, drainage |
