DIESEL WATER PUMP

Aluminum Diesel Water Pump

Product description: Aluminum Diesel Water Pump
INQUIRY

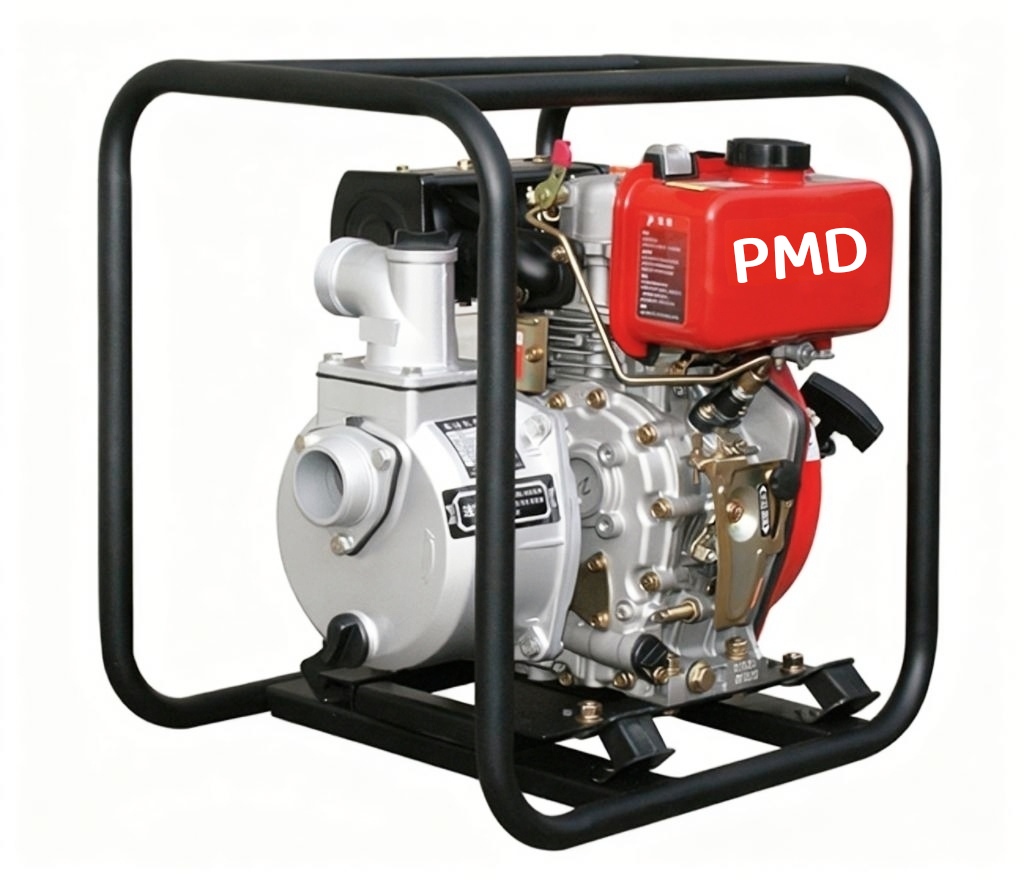

PMD series Aluminum-body diesel water pump, light weight and corrosion resistant, powered by PMD high-performance diesel engines. Full frame protection reduces vibration; easy starting, simple operation, low fuel consumption, easy maintenance, long service life and durable construction. Suitable for agricultural irrigation, fire fighting, municipal projects, flood drainage, mine sand pumping and chemical liquid transfer.

参数 Parameter	PMD20	PMD30	PMD40	PMD60	PMD80
水泵类型 Type	Aluminum diesel water pump 铝制柴油水泵
进出口直径 Inlet/Outlet (mm, in)	50 (2″)	80 (3″)	100 (4″)	150 (6″)	200 (8″)
最大流量 Max. Flow (m³/h)	36	60	96	126	260
最大扬程 Max. Head (m)	25	26	22	20	19
自吸时间 Self-priming Time (s/4m)	80	120	220	250	300
最大吸程 Max. Suction (m)	8	8	8	6	2
转速 Speed (r/min)	3600
噪声 Noise (dB(A)/7m)	85
外形尺寸 Dimension (mm)	500×420×530	570×465×560	660×480×610	800×600×840	1050×740×840
净重 Gross Weight (kg)	39	48	67	154	198
配套动力 Engine Model	170F	178F	186F	192F	292
额定功率 Rated Power (kW)	2.8	4.0	6.3	8.5	14.5
燃油消耗 Fuel Consump. (g/kW·h)	288	285	281	281	≤245
排量 Displacement (cm³)	211	296	418	499	996
启动方式 Start System	手启动 Recoil	手启动 Recoil	手启动 Recoil	手/电 Recoil/Electric	电启动 Electric
油箱容量 Fuel Tank (L)	2.5	3.5	5.5	5.5	15
持续运行 Continuous (hr)	2.5	2.5	3	2	3
